Partition wall system

Double-Pane All-Glass Wall T55

Double-pane glazing, frameless all-glass wall

The premium-class partition wall system

This premium-class partition wall system combines transparency with high sound insulation performance. The flush-mounted glazing eliminates the need for vertical profiles entirely and is perfectly suited for high-end work environments and spaces where a high degree of privacy is essential. As continuous glazing without visible seals, it creates a seamless glass surface when viewed from the side. The double-pane glazing allows for the installation of interior blinds to temporarily adjust visibility. The materials used meet sustainability standards and can be combined with all Goldbach Kirchner partition wall systems.

Glazing

All-glass wall with double-pane glazing

Sound insulation

43 to 48 dB Rw,p (tested in the laboratory in accordance with DIN EN ISO 10140-3 and DIN EN ISO 717-1)

Appearance

Frameless all-glass wall without vertical supports

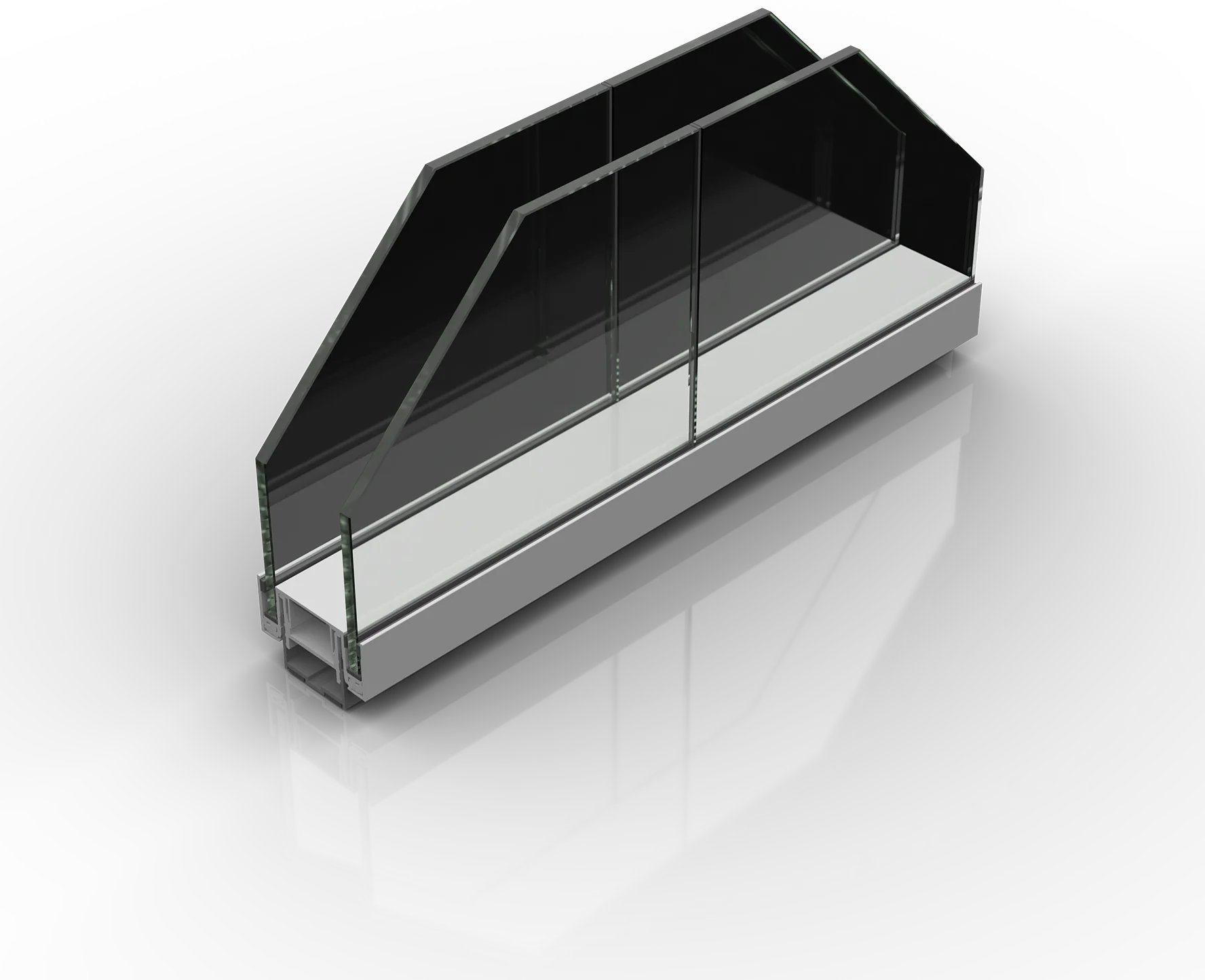

Cross-section

Double-pane glazing, frameless all-glass wall

Features

Technical specifications of the T55 partition wall system

All materials used comply with current technical specifications and sustainability standards. The T55 glass partition can be combined with all Goldbach Kirchner partition wall systems.

Technical specifications

Construction
Flexible all-glass wall with double-pane glazing, without vertical mullions, uniform wall thickness of 100 mm
Wall thickness
100 mm
Glazing
Double-pane glazing in aluminum mounting profiles with a dry seal in between
Connection profiles
Extruded aluminum profiles, anodized in EV1 as standard, optionally available in other anodized colors as well as powder-coated in RAL and custom colors to meet individual design requirements
Floor connection
Aluminum telescoping profile, powder-coated, approx. 40 mm

Sound insulation

Sound insulation rating
43 to 48 dB Rw,p (according to DIN EN ISO 10140-3, DIN EN ISO 717-1)

Smoke protection

Classification
Possible, in accordance with DIN 18095-2

Sustainability

Recycling
Pure separation by type and full recyclability of the materials are possible
Compliance with the criteria of the following certifications
DGNB, LEED
Circular Construction
Wall panels can be dismantled and relocated without damage — even while the facility is in operation
System extension
Compatible with virtually all Goldbach Kirchner partition wall systems
CO2-Neutral
Produced without the use of fossil fuels
Durability
Relocation is possible without loss of material

Other models

Fall protective
Version with ABP in accordance with DIN 18008-4
Curved
Minimum radius: 600 mm

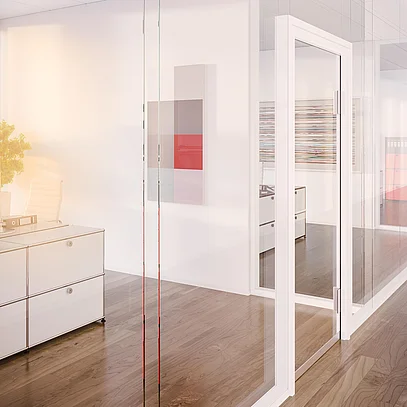

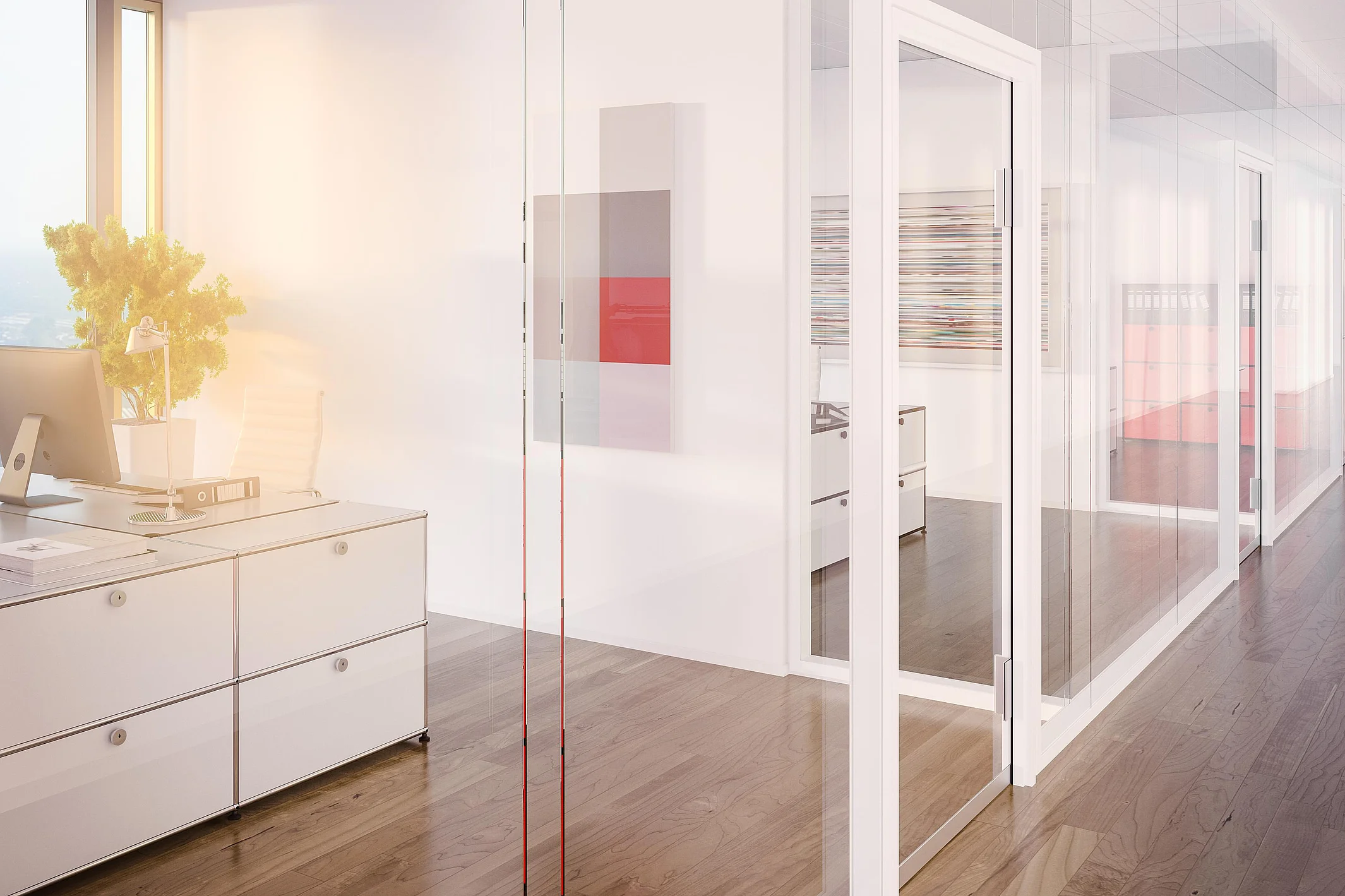

T55 double-pane glazing without vertical profiles, with white bottom and top trim
T55 double-pane glazing without vertical profiles

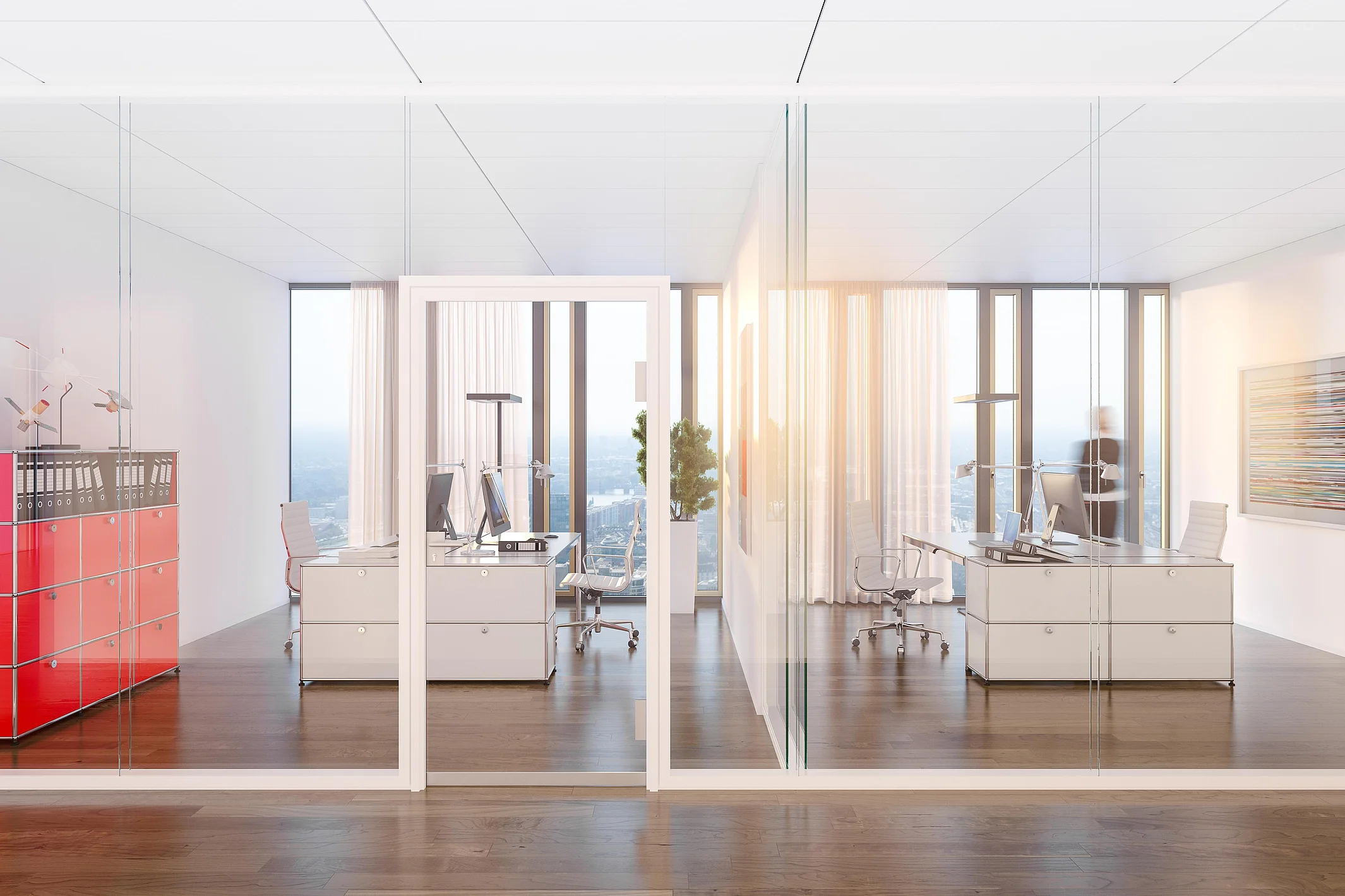

T55 double-pane glazing without vertical profiles, with white bottom and top trim
T55 double-pane glazing for high sound insulation performance

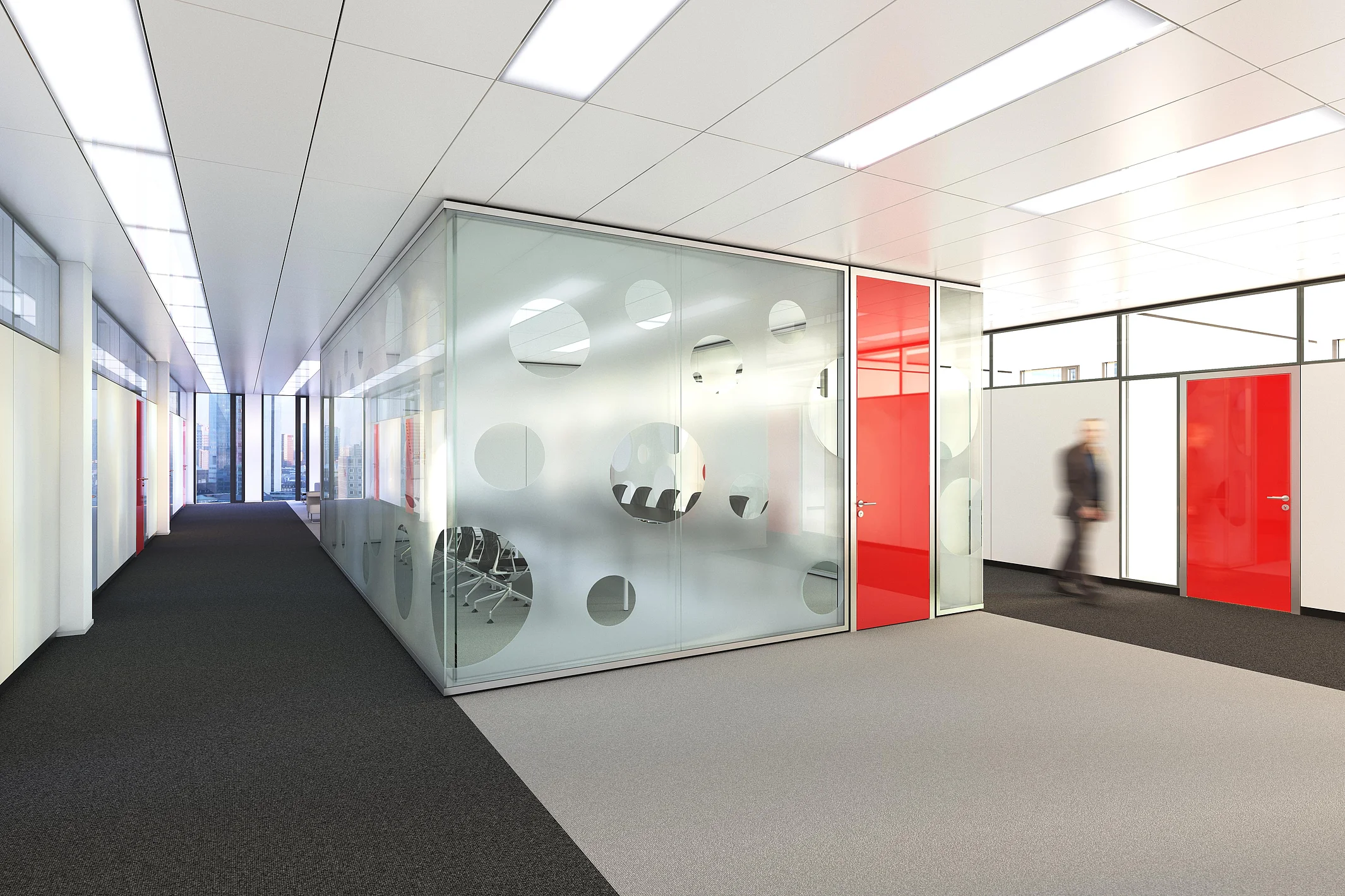

Double-pane glazing and floor-to-ceiling tube frame door

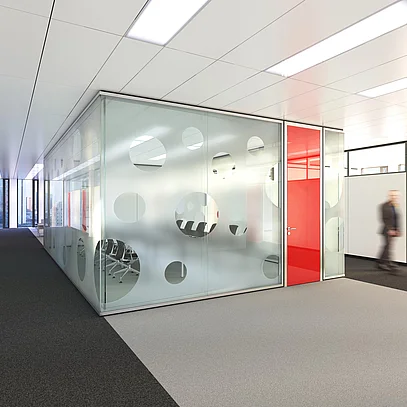

Double-pane glazing and floor-to-ceiling tube frame door

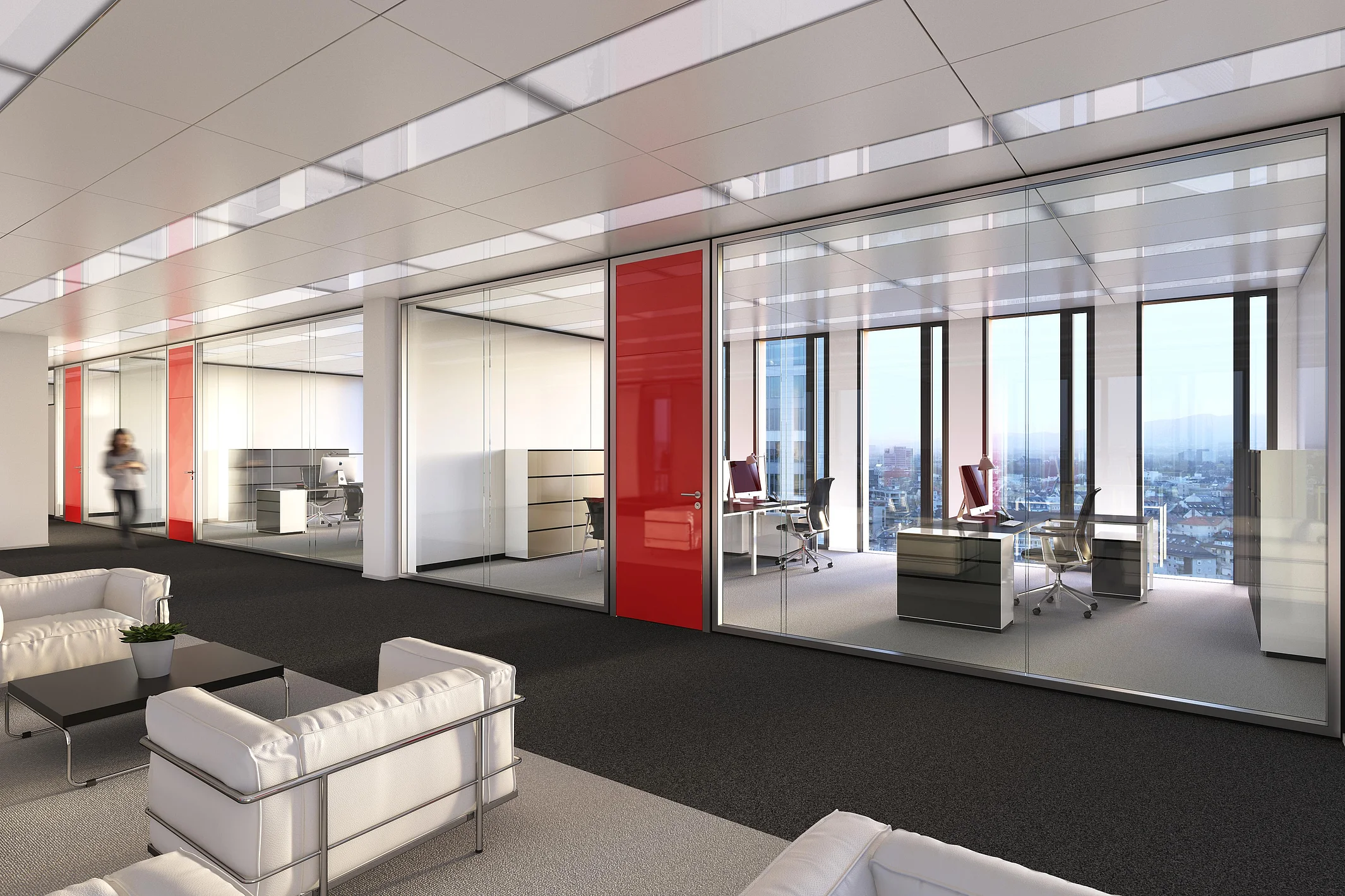

Frameless all-glass wall with double-pane glazing

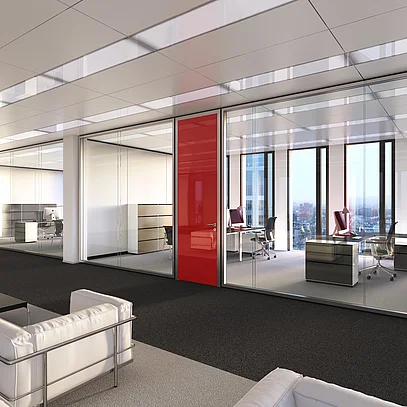

Frameless all-glass wall with double-pane glazing
