Partition wall systems

Comparison of our partition wall systems

Type	Solid wall	Single-pane glazing			Double-pane glazing				Triple-pane glazing		All-glass wall
Profile
Partition wall	T10	T42	T43	T46 EI30	T34	T34 NATURE	T35	T65	T34 EI30	T36 EI30	T50	T50 LOFT	T55
Glazing	None	Center-mounted	Insulated, centered	Center-mounted	Flush-mounted	Flush-mounted	Flush-mounted	Bonded	Flush-mounted	Flush-mounted	Single-pane	Single-pane	Double-pane
Wall thickness	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	27-33 mm	27-33 mm	100 mm
Sound insulation	40-51 dB	28-34 dB	39 dB	37-40 dB	40-51 dB	In testing	42-51 dB	40-50 dB	40-46 dB	43 dB	32-40 dB	32-40 dB	43-48 dB
Fire safety	F30/EI30 EI30-NBB EI60-NBB			F30/EI30		In testing			F30/EI30	F30/EI30
Smoke protection						In testing
Fall protection						In testing
Blinds						In testing
Telescopic base
Curved design
Room-in-Room				F0					F0	F0
EPD

Room solutions

Comparison of our room solutions

Room solution

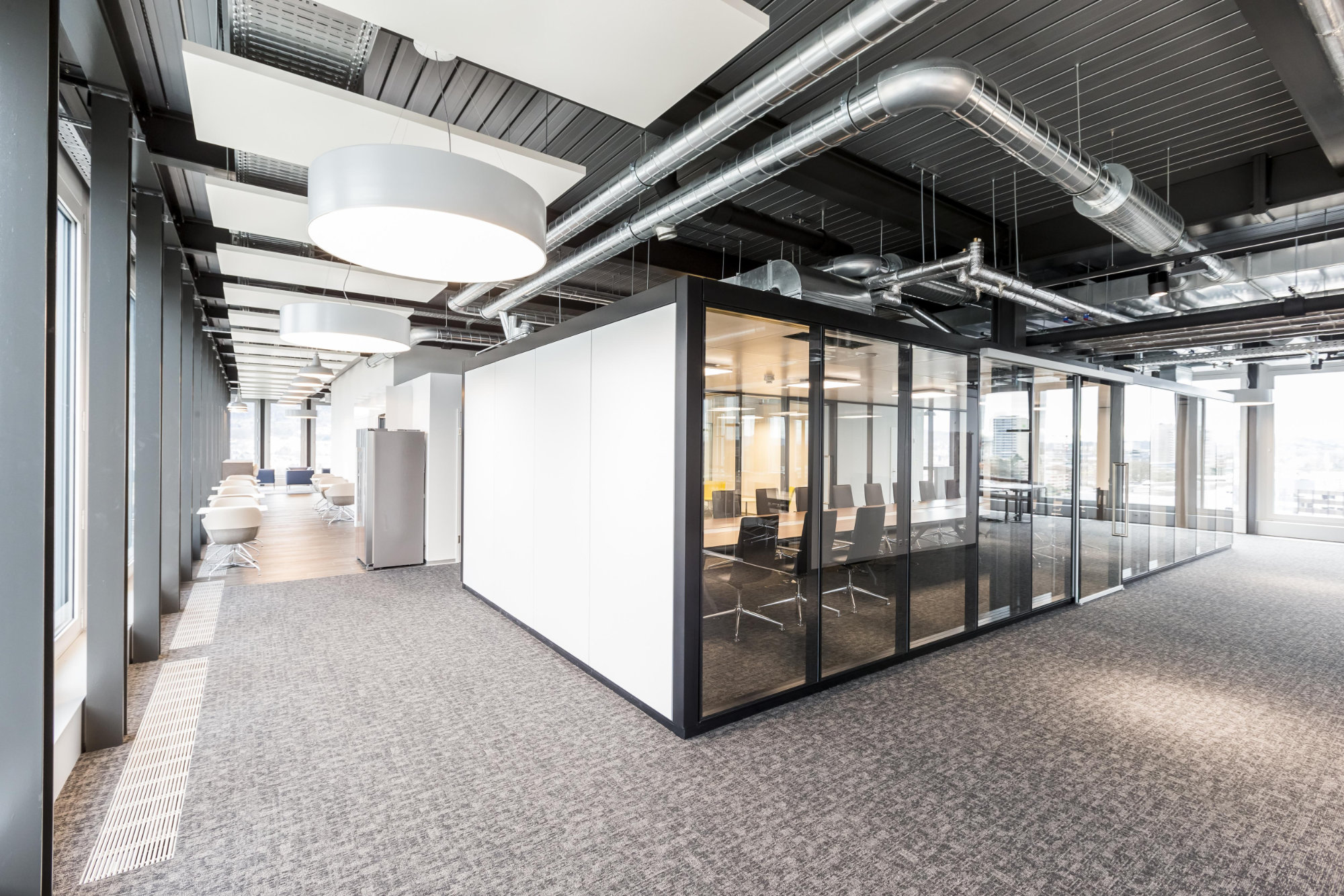

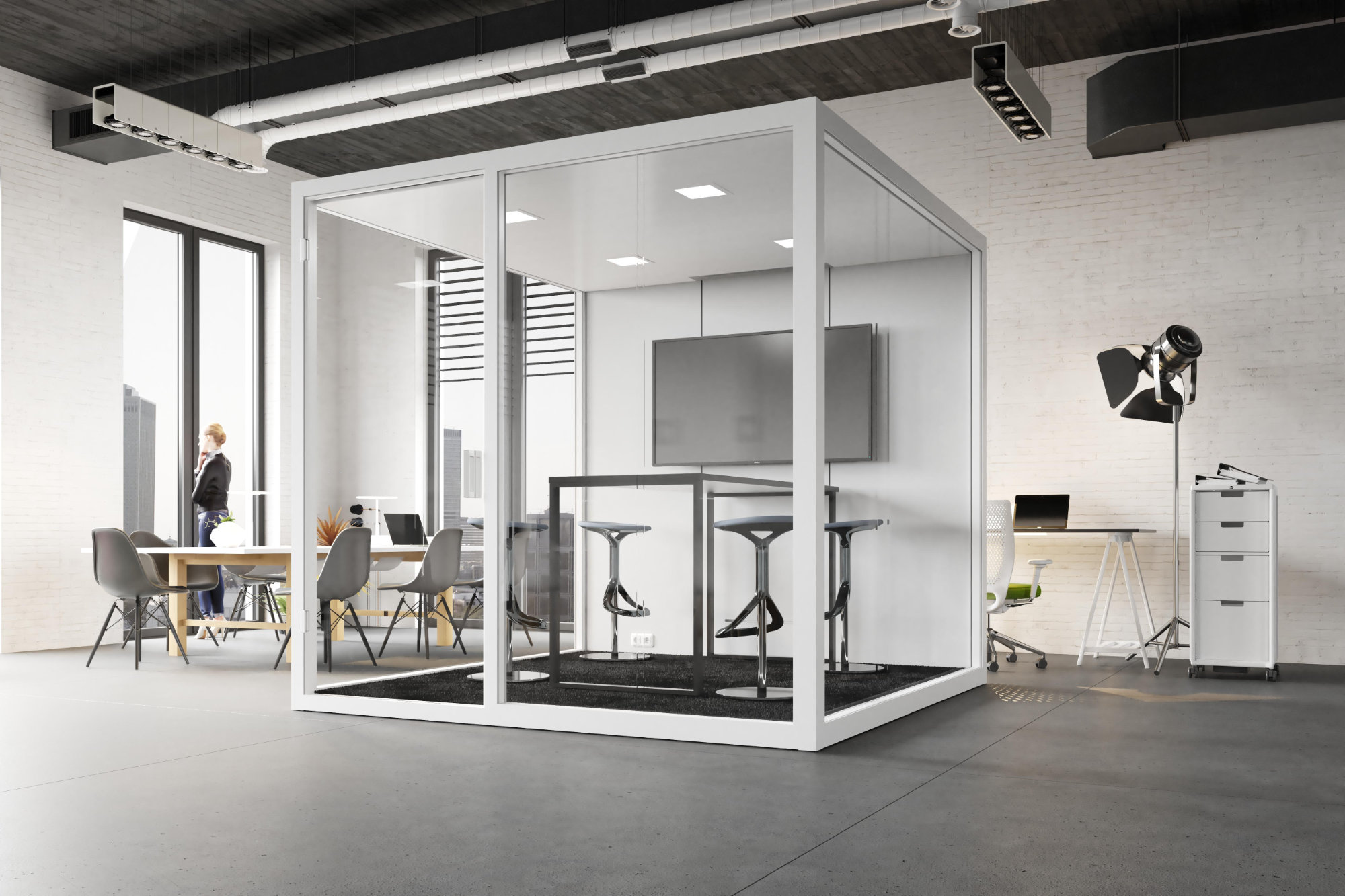

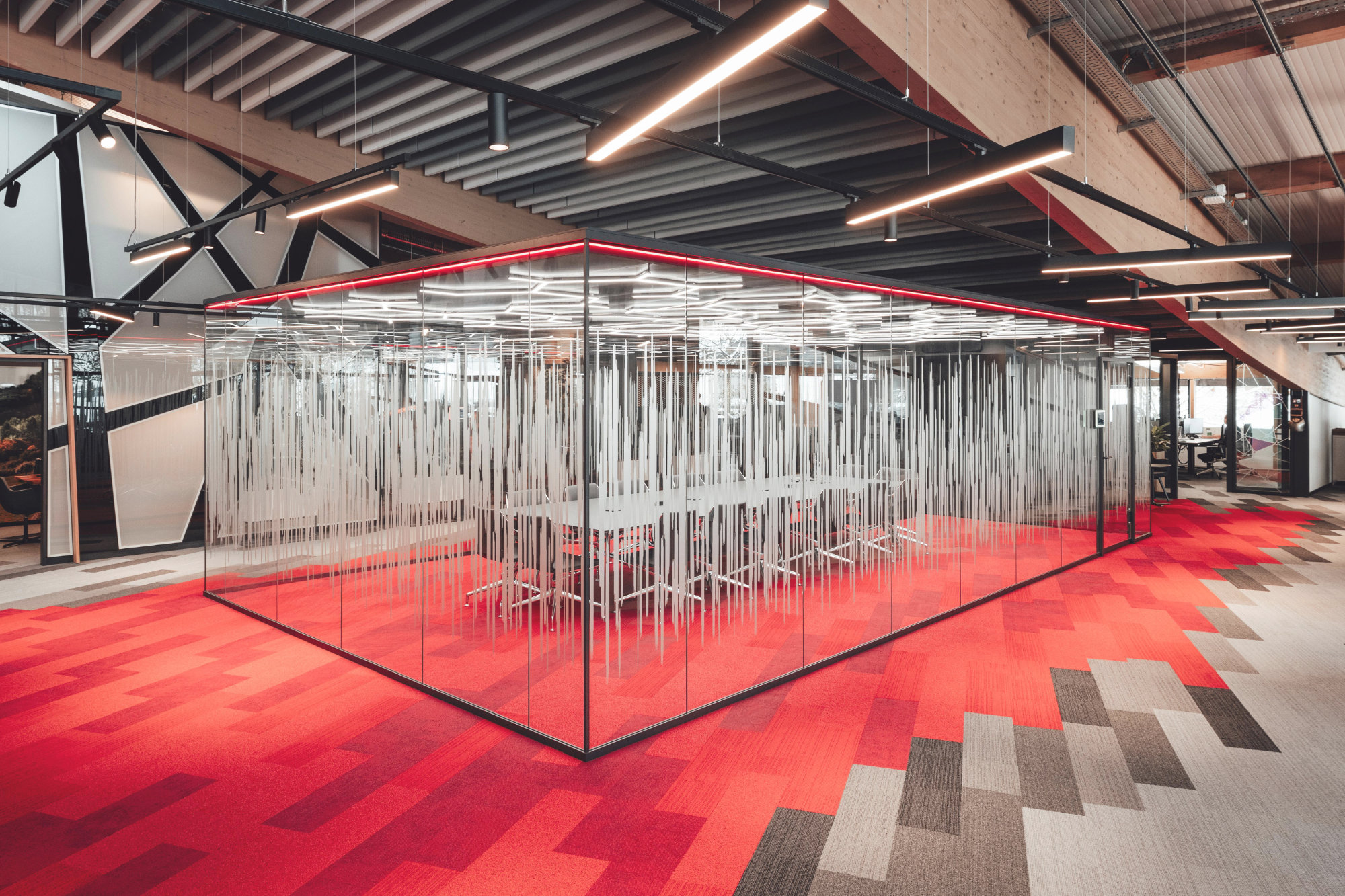

Room solution	GK SPACES Based on our partition wall systems	GK CUBE High-performance, modular room solution	GK LUMEE Self-supporting all-glass room solution
Glazing	Depending on the partition wall system	Single-pane or double-pane	Single-pane all-glass
Wall thickness	100 mm	70 mm	34 mm
Sound insulation	Depending on the partition wall system	27-37 dB	In testing
Special features	With telescopic base	No screw fixing to the building structure	Load transfer through the glass
Ventilation
Air conditioning
Electrification
Organization
