Partition wall system

Triple-pane glazing T36 EI30

Triple-pane glazing, flush with the front, with fire-resistant glass in the center

Fire resistance rating F30/EI30

The flexible T36 EI30 partition wall system combines aesthetic elegance with outstanding functionality in interior design. The triple-pane glazing with a fire-resistant glass panel in the center positions the system as a harmonious complement to the T35 in the field of fire protection. The system, with a face width of 34 mm, meets fire resistance class F30/EI30 and can be planned in flexible width grids and room heights. The materials used meet sustainability standards and can be combined with all Goldbach Kirchner partition wall systems.

Fire safety

Germany: DIBt Approval Z-19.14-2091, Switzerland: VKF Approval No.: 23057

Glazing

Triple-pane glazing, flush with the front, with fire-resistant glass in the center

Floor mounting

Steel telescopic base, powder-coated, height adjustment +/- 20 mm

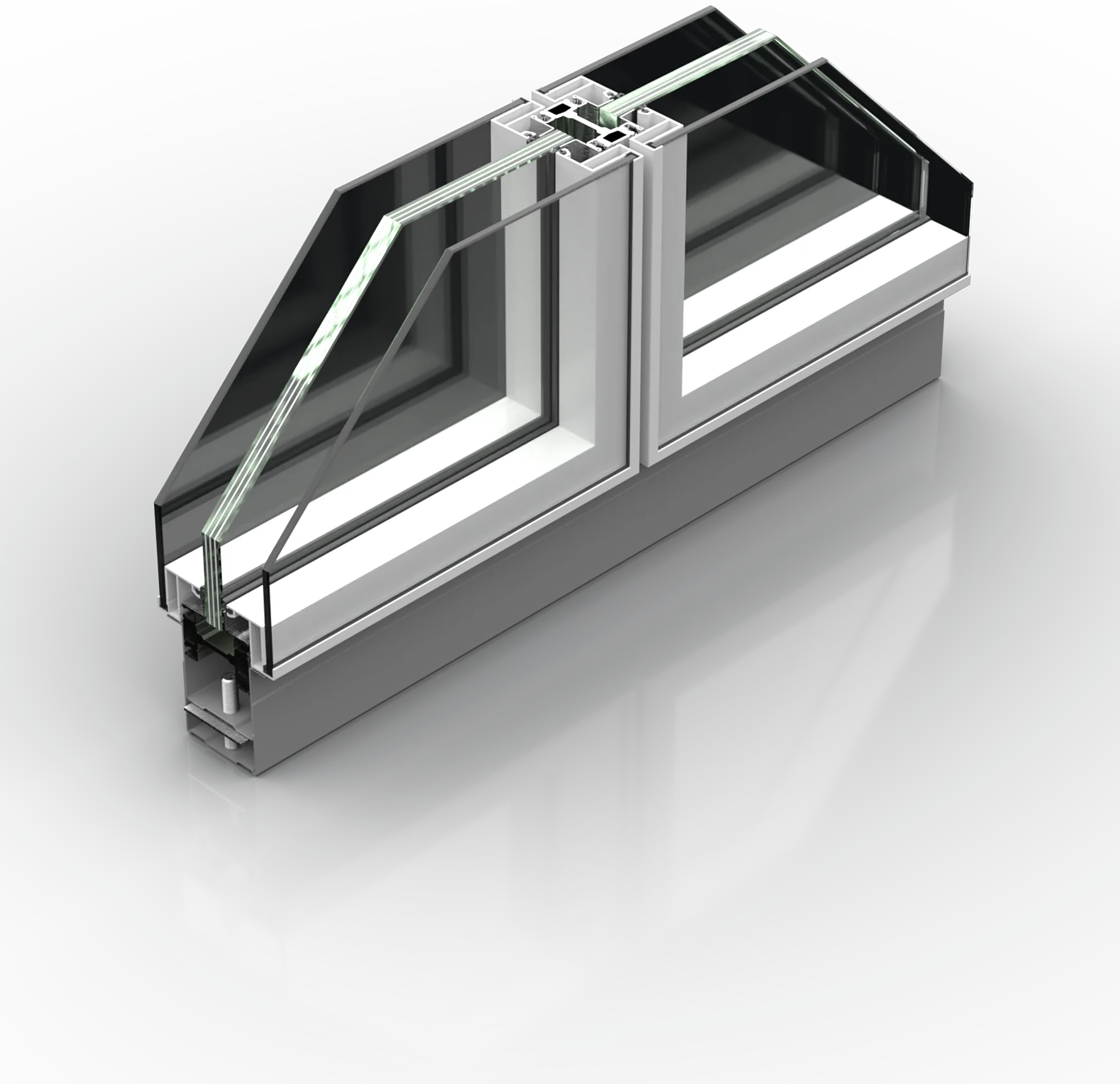

Cross-section

Triple-pane glazing with fire-resistant glass and aluminum profiles in a steel-frame construction

Features

Technical specifications of the T36 EI30 partition wall system

All materials used comply with current technical specifications and sustainability standards. The T36 EI30 glass partition can be combined with all Goldbach Kirchner partition wall systems.

Technical specifications

Construction
Non-load-bearing interior partition system; compartments formed by steel profiles as a substructure; aluminum-glass frames secured with clip screws; accessible for maintenance at any time
Wall thickness
100 mm
Glazing
Triple-pane glazing, flush with the front, featuring two 6 mm tempered glass panes and a central fire-resistant glass pane
Aluminum frame
Extruded aluminum profiles, standard EV1 anodized finish, face width 34 mm
Connection profiles
Steel, powder-coated in RAL 9011 matte with a fine texture, RAL 9010, and RAL 9006
Floor connection
Steel telescoping profile, powder-coated, approx. 80 mm, floor leveling +/- 20 mm

Sound insulation

Sound insulation rating
40 to 46 dB Rw,p (according to DIN EN ISO 10140-3, DIN EN ISO 717-1)

Fire safety

Classification
Germany: DIBt Approval No. Z-19.14-2091, Switzerland: VKF Approval No. 23057

Smoke protection

Classification
Possible, in accordance with DIN 18095-2

Sustainability

Recycling
Pure separation by type and full recyclability of the materials are possible
Compliance with the criteria of the following certifications
DGNB, LEED
Circular Construction
Wall panels can be dismantled and relocated without damage — even while the facility is in operation
System extension
Compatible with virtually all Goldbach Kirchner partition wall systems
CO2-Neutral
Produced without the use of fossil fuels
Durability
Relocation is possible without loss of material

Extensions

Modular door systems

Compare partition wall systems

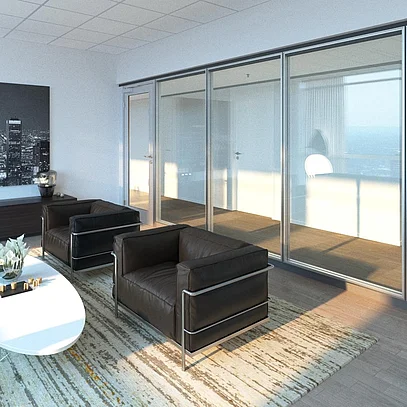

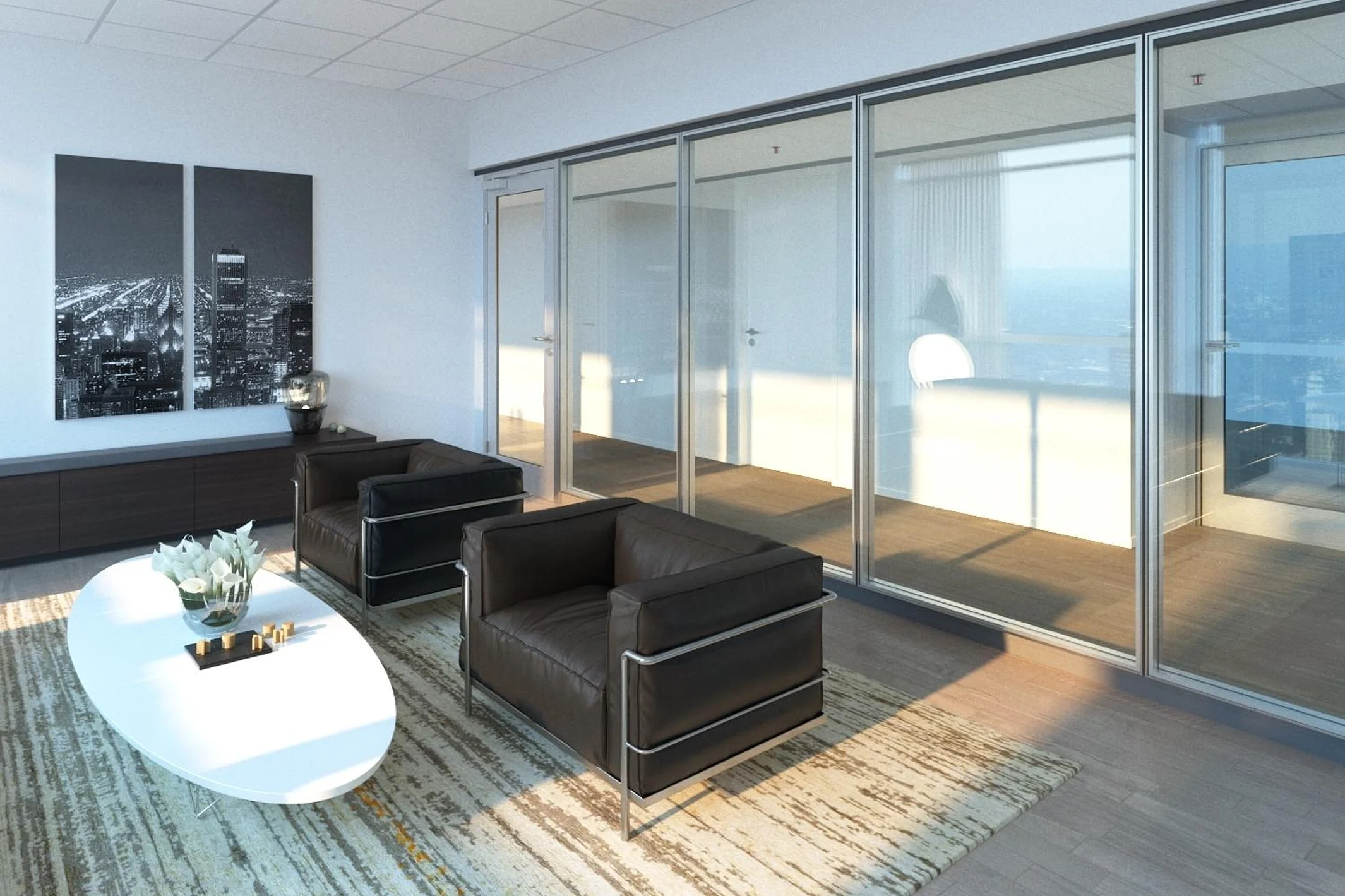

Flush-mounted triple-pane glazing with fire safety rating F30/EI30
Flush-mounted triple-pane glazing with fire safety rating F30/EI30

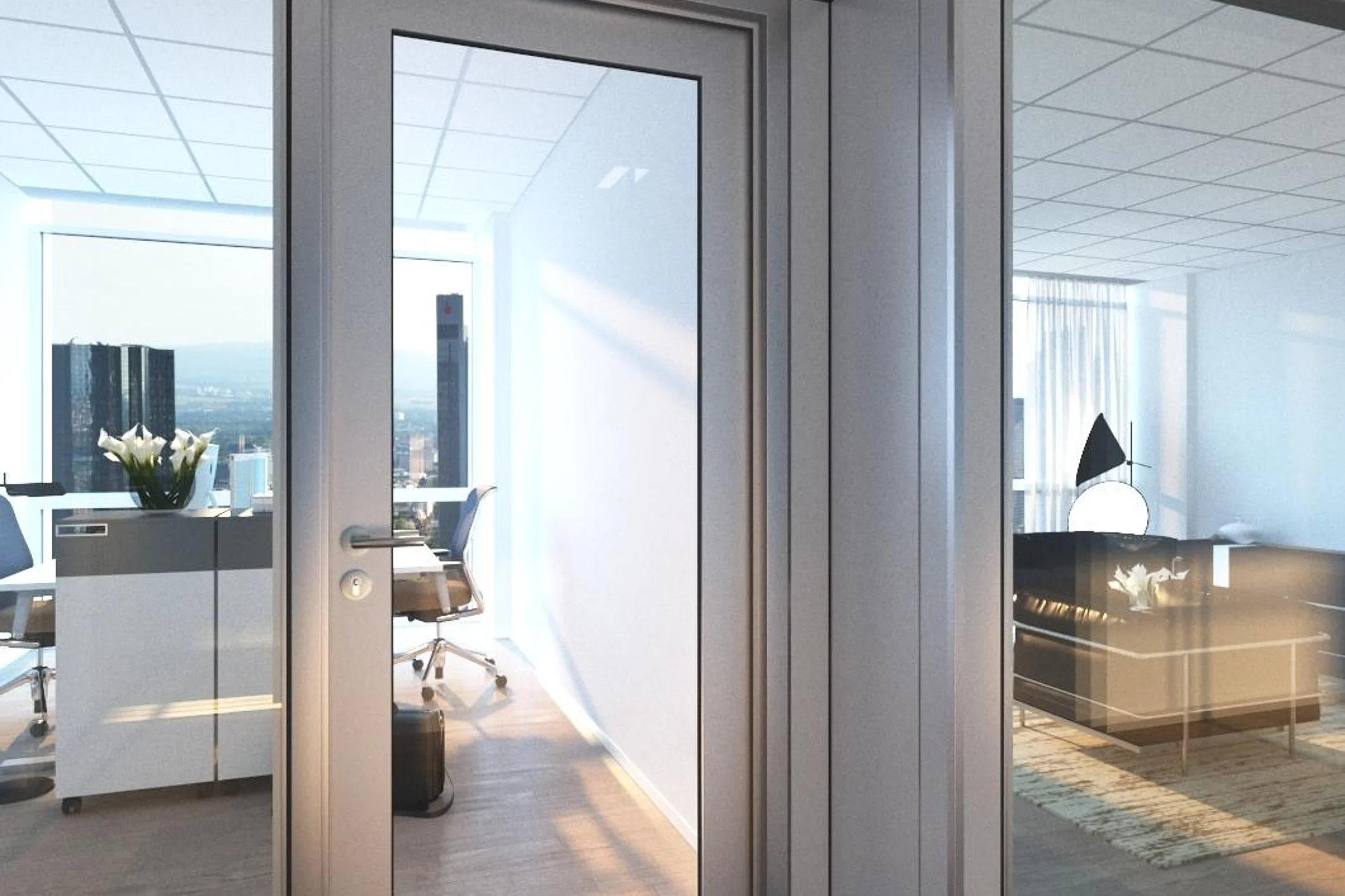

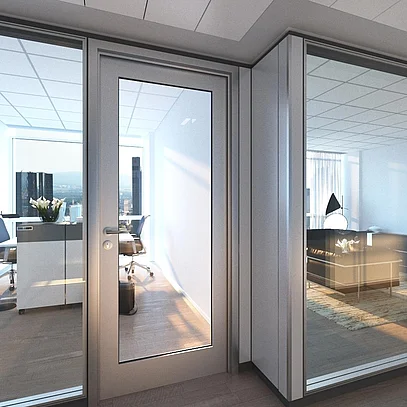

Fire-resistant glazing with an inner fire-resistant pane
Fire-resistant glazing with an inner fire-resistant pane

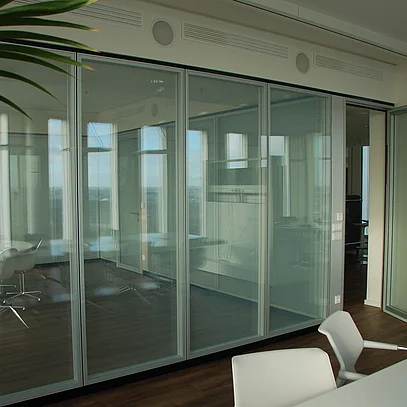

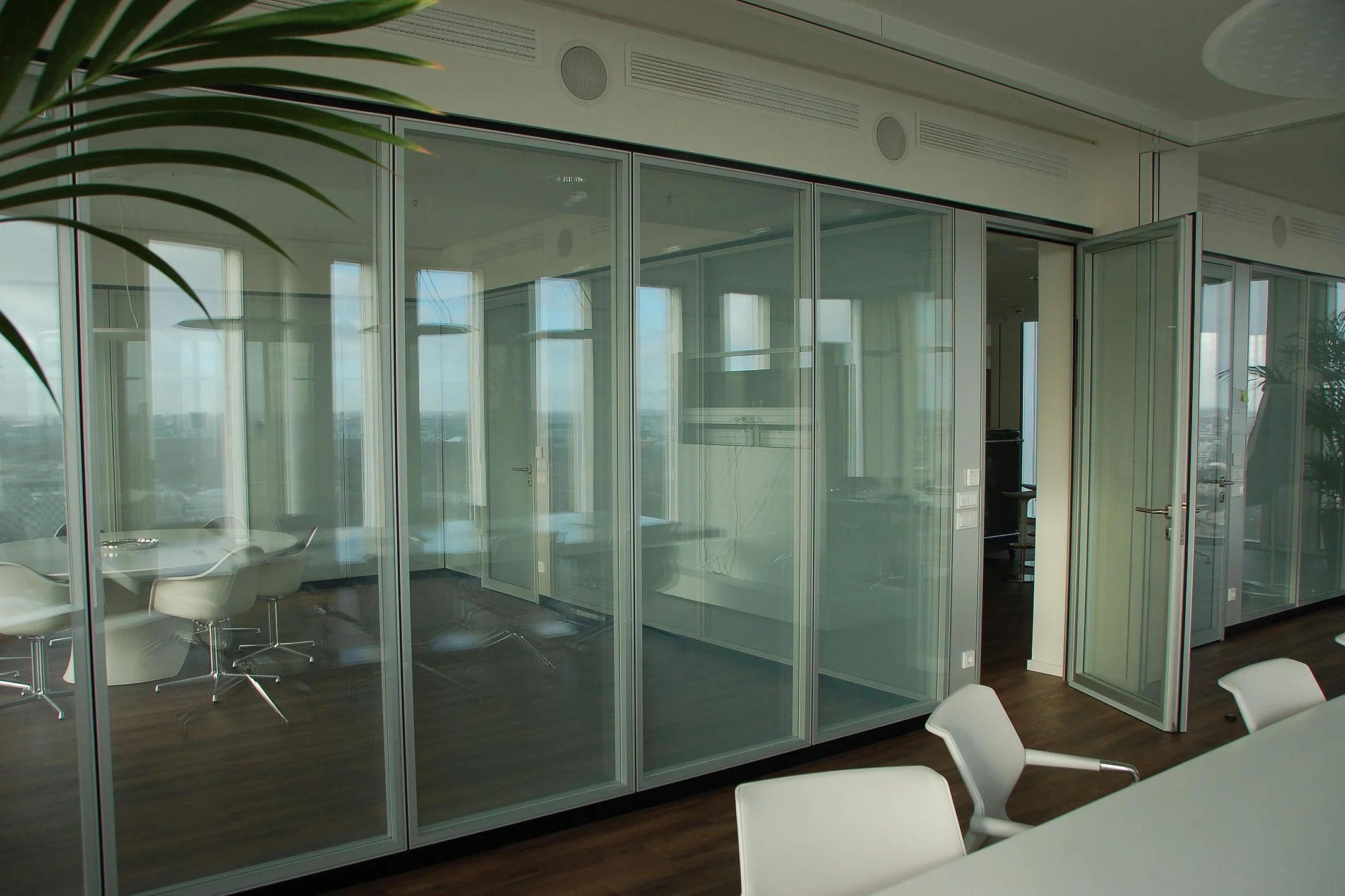

Triple-pane glazing with Smartglass in the center, F0
