Partition wall system

Double-pane glazing T65

Double-pane glazing, flush-mounted, without a visible frame

Flush bonding for a seamless glass look

The elegant T65, featuring bonded glazing, offers all the benefits of flexible partition wall systems. With no visible frame, the wall system stands out thanks to its flush bonding using the “structural glazing” method. The bonding is available in either black or gray. For architects and designers, this means greater design freedom. The materials used meet sustainability standards and can be combined with all Goldbach Kirchner partition wall systems.

Glazing

Double-pane glazing, flush-mounted, using the
structural glazing method, without a visible frame

Appearance

Full-glass design, with no visible frame

Sound insulation

40 to 50 dB Rw,p (tested in the laboratory in accordance with DIN EN ISO 10140-3 and DIN EN ISO 717-1)

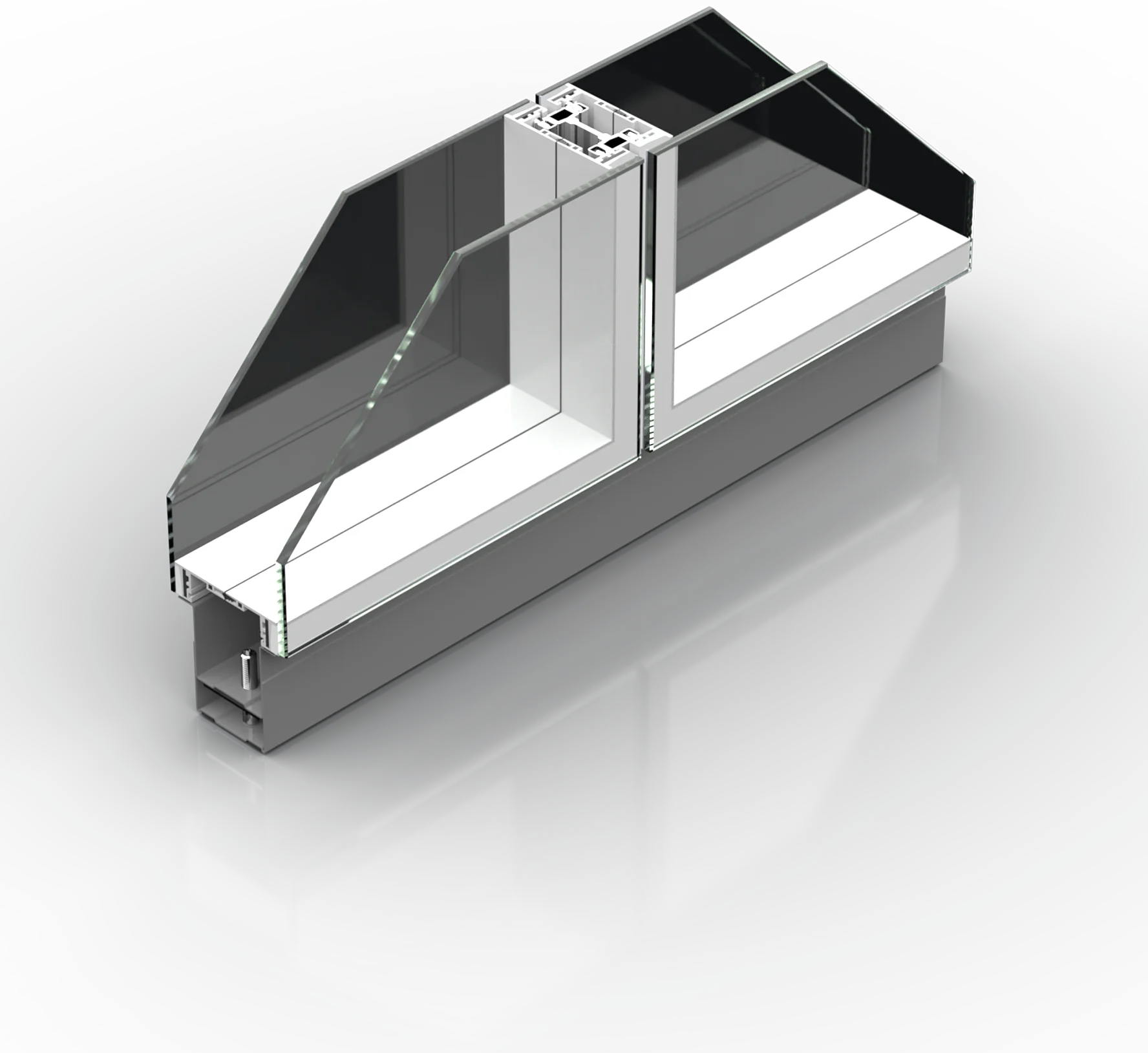

Cross-section

Double-pane glazing, flush-mounted, with an aluminum profile in a steel frame construction

Features

Technical specifications of the T65 partition wall system

All materials used comply with current technical specifications and sustainability standards. The T65 partition can be combined with all Goldbach Kirchner partition wall systems.

Technical specifications

Construction
Non-load-bearing interior partition system; compartments formed by steel profiles as a substructure; aluminum-glass frames secured with clip screws; accessible for maintenance at any time
Wall thickness
100 mm
Glazing
Double-pane glazing with no visible frame, flush-mounted using the "structural glazing" method, optionally with two-component silicone in black or gray
Aluminum frame
Extruded aluminum profiles, anodized to EV1 standard
Connection profiles
Steel, powder-coated in RAL 9011 matte with a fine texture, RAL 9010, and RAL 9006
Floor connection
Steel telescoping profile, powder-coated, approx. 80 mm, floor leveling +/- 20 mm

Sound insulation

Sound insulation rating
40 to 50 dB Rw,p (according to DIN EN ISO 10140-3, DIN EN ISO 717-1)

Fire safety

Classification
No requirements

Sustainability

Recycling
Pure separation by type and full recyclability of the materials are possible
Compliance with the criteria of the following certifications
DGNB, LEED
Circular Construction
Wall panels can be dismantled and relocated without damage — even while the facility is in operation
System extension
Compatible with virtually all Goldbach Kirchner partition systems
CO2-Neutral
Produced without the use of fossil fuels
Durability
Relocation is possible without loss of material

Other models

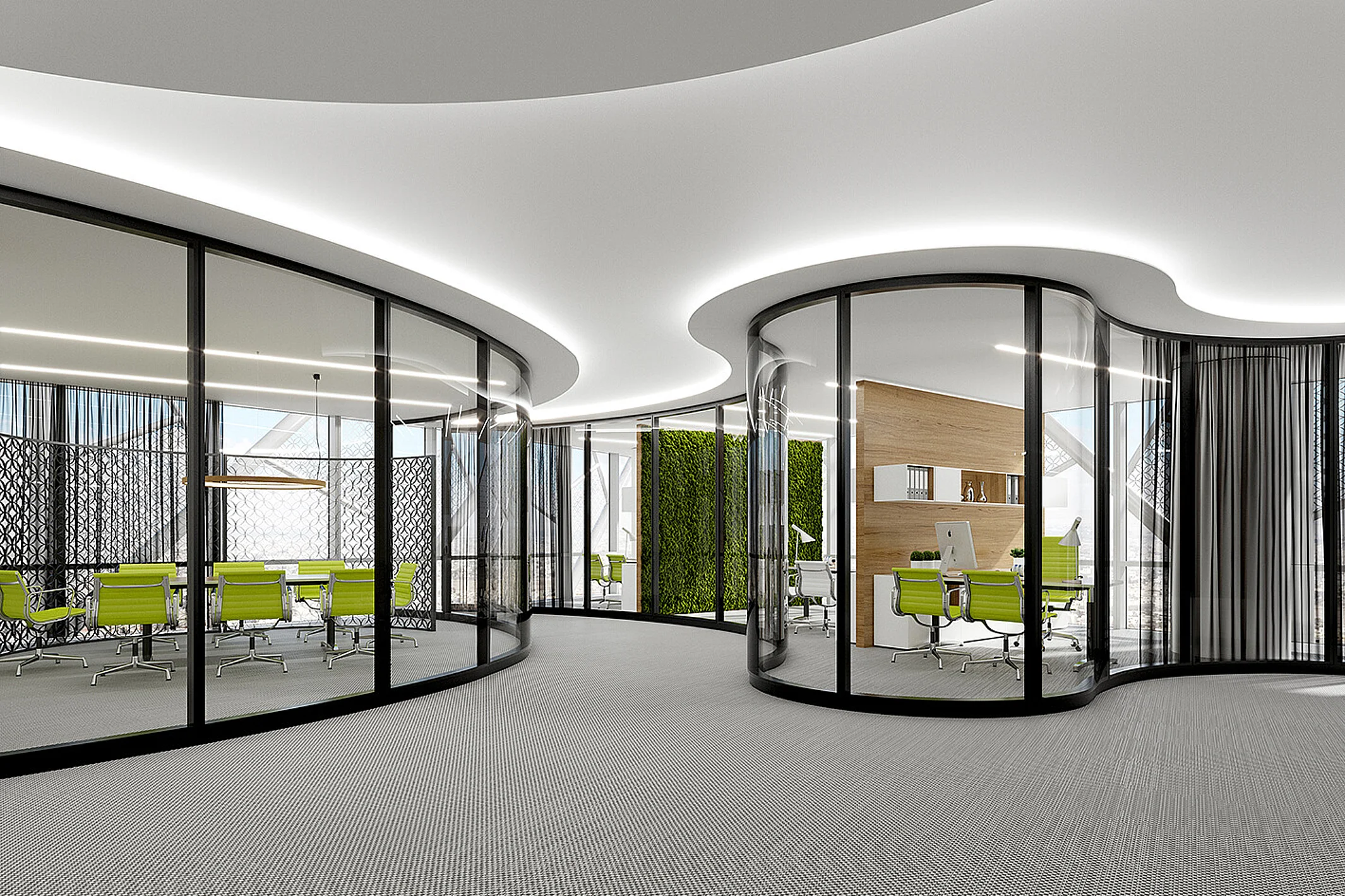

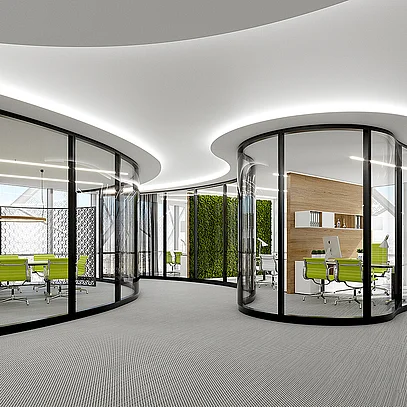

Curved
Minimum radius: 600 mm

Extensions

Modular door systems

Compare partition systems

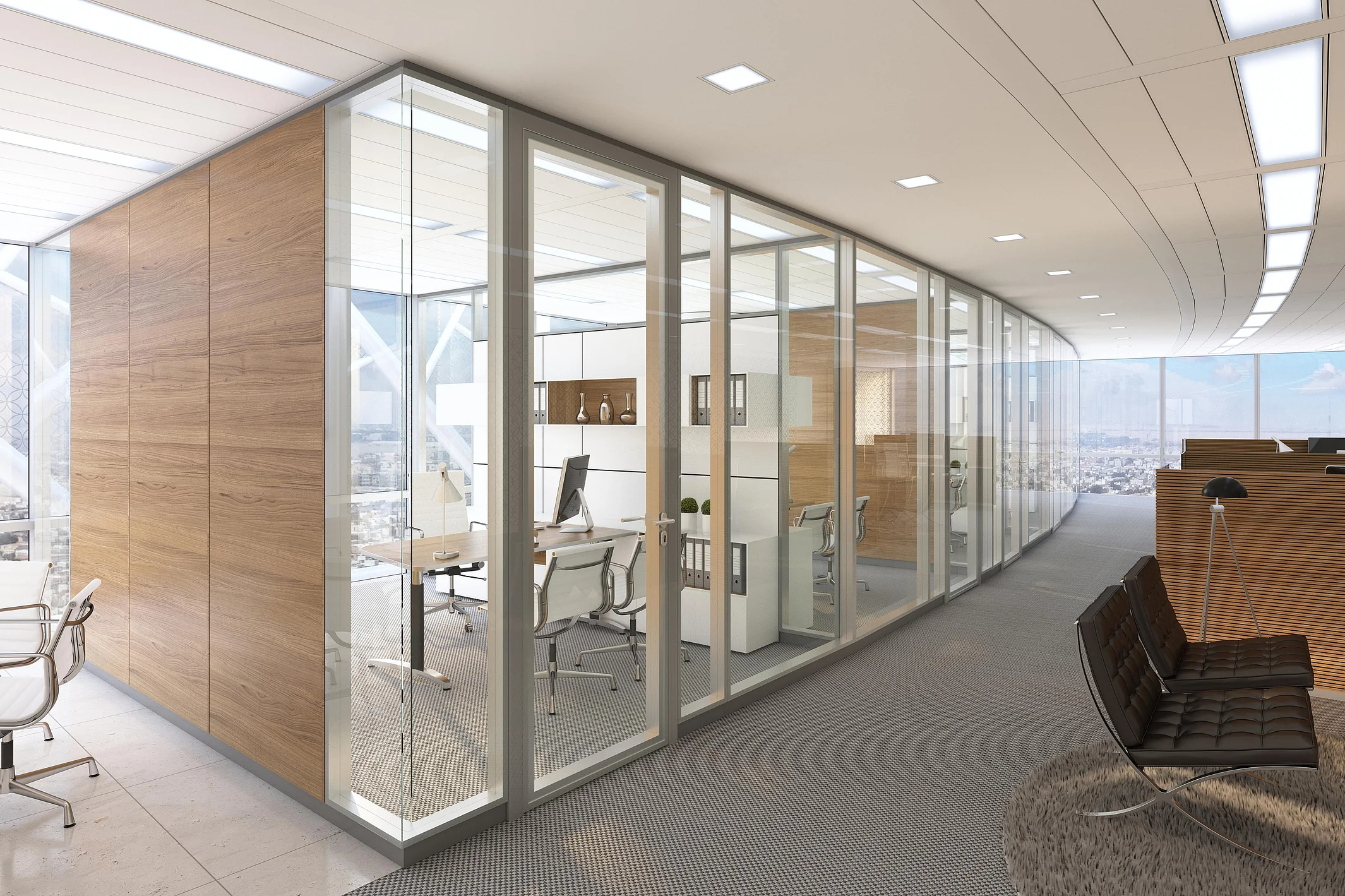

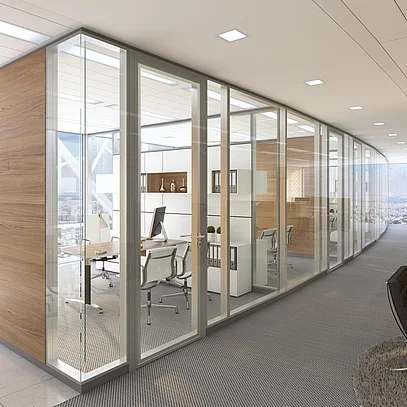

T65 two-panel partition wall system with bonded glass, corner view, combined with T10 wood-grain finish
T65 two-panel partition wall system with bonded glass

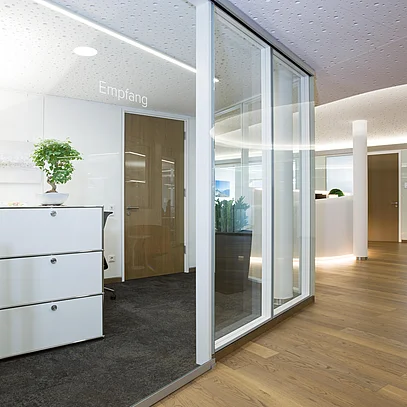

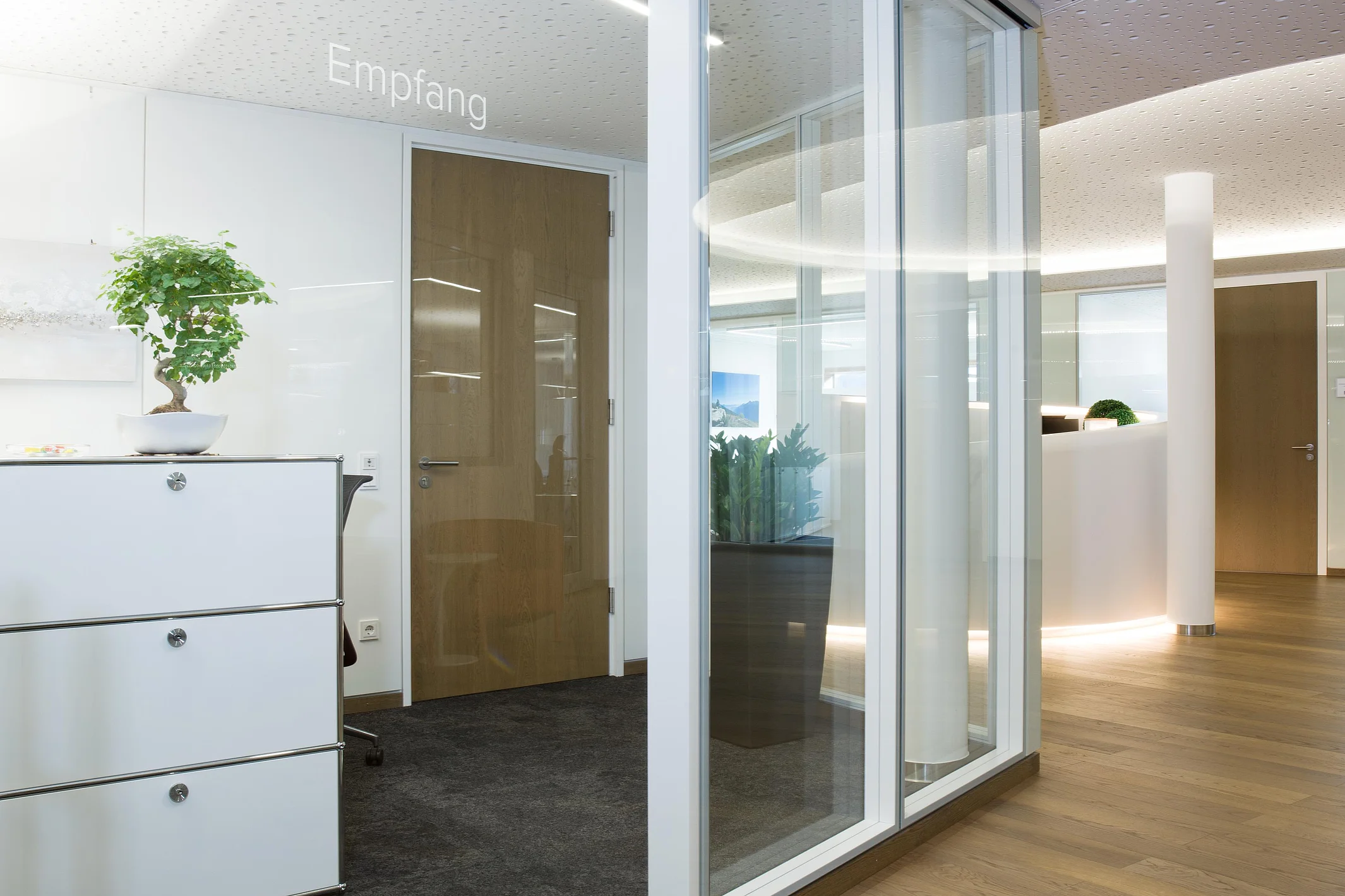

Lightweight partition wall system with bonded glass and white profiles
Lightweight partition wall system with bonded glass and white profiles

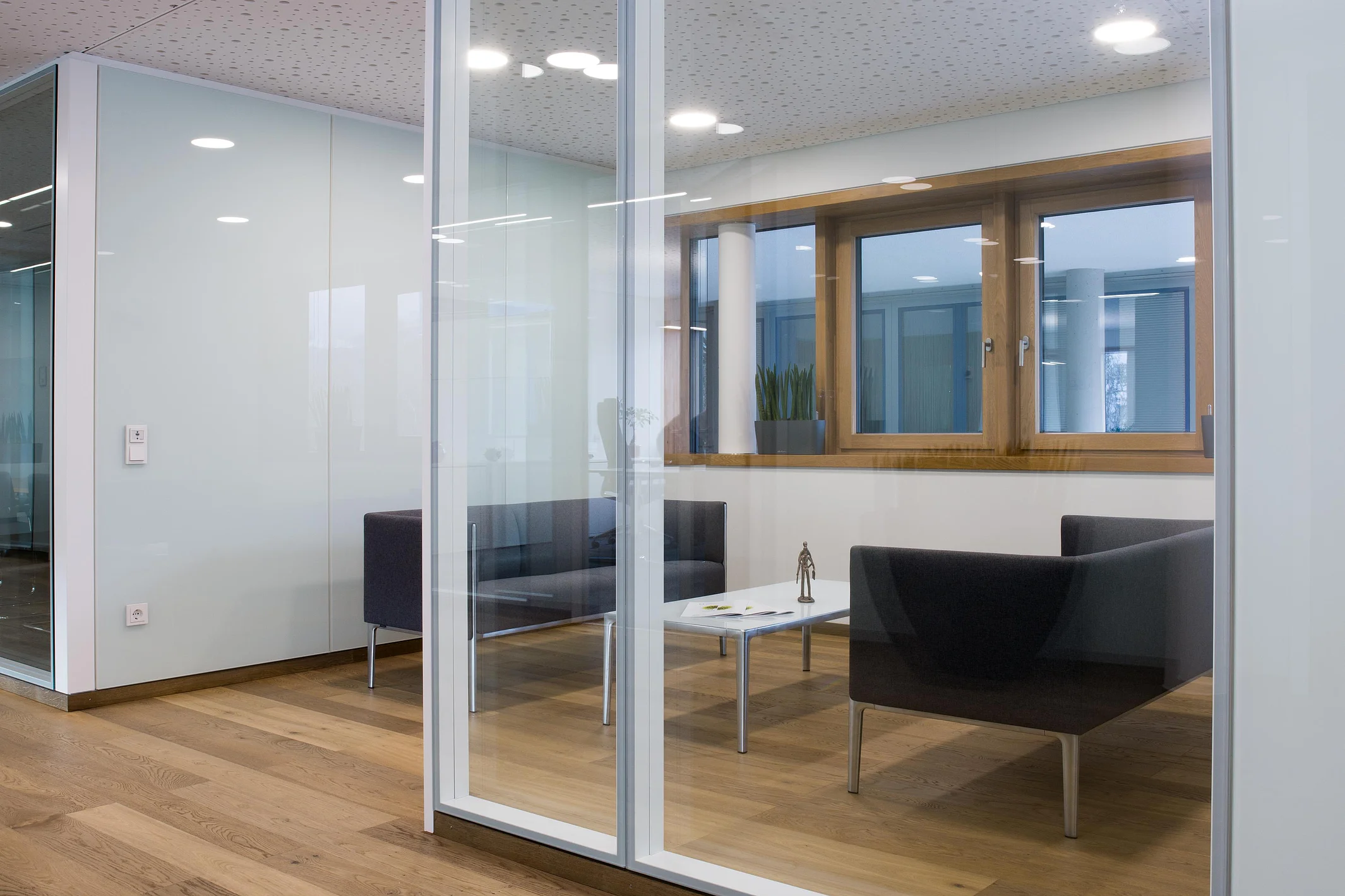

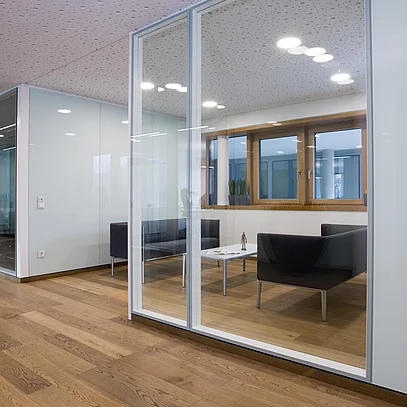

Open floor plans combined with warm wood finishes
Open floor plans combined with warm wood finishes

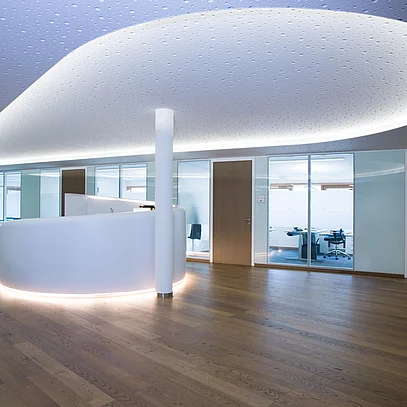

Partition Wall System T65, reception area with a view of the office spaces, transparent room structures combined with warm wood finishes
Open floor plans combined with warm wood finishes

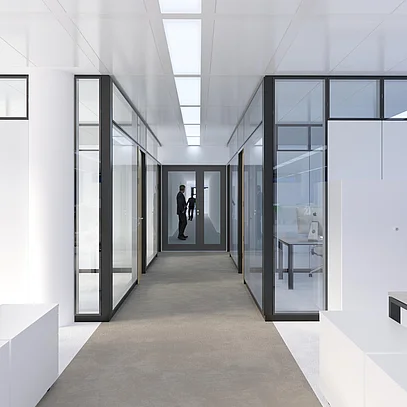

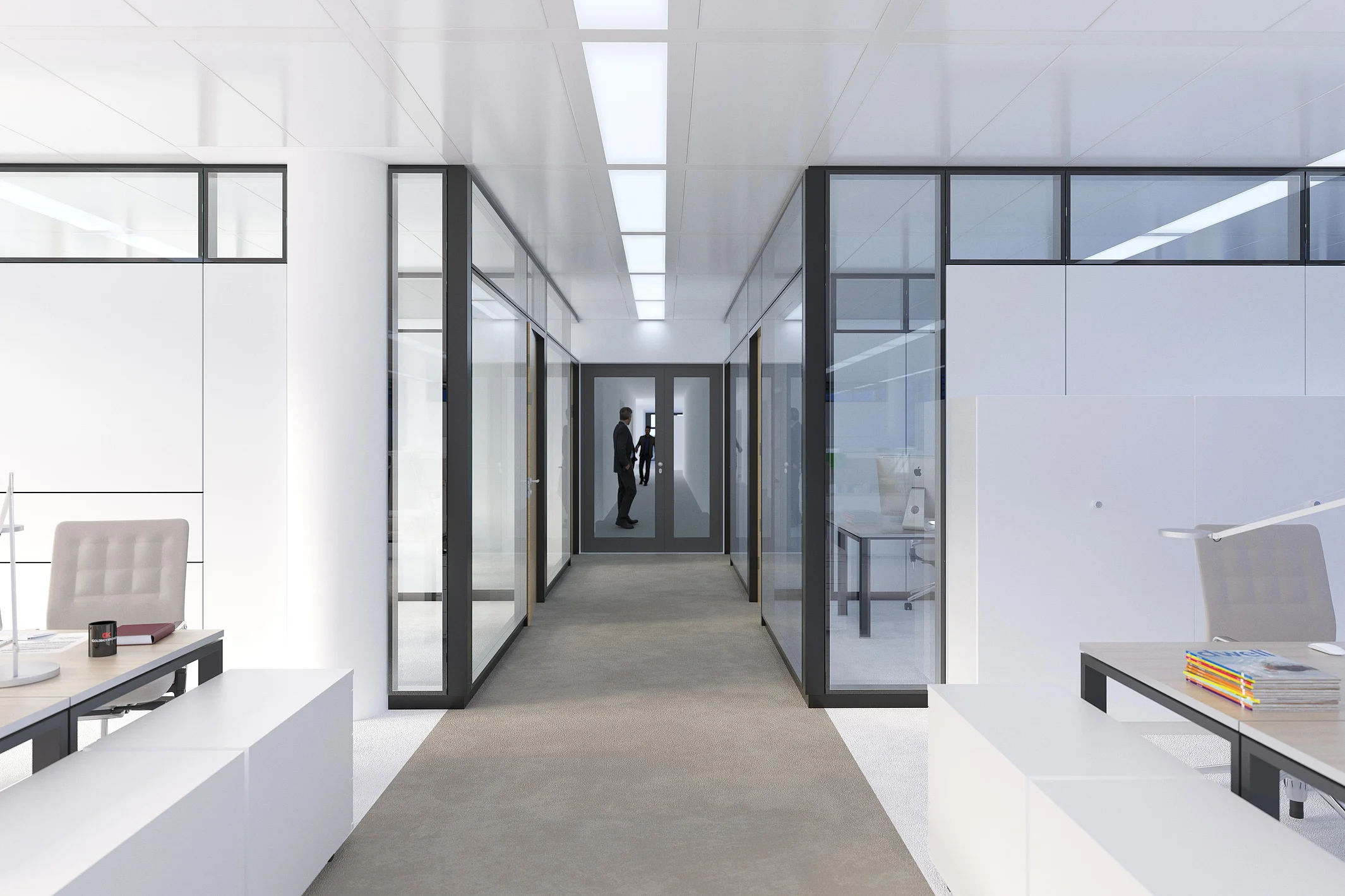

View of the hallway, with Goldbach Kirchner T65 partition walls on the right and left, featuring structural glazing and black profiles
T65 partition wall system with structural glazing and black profiles

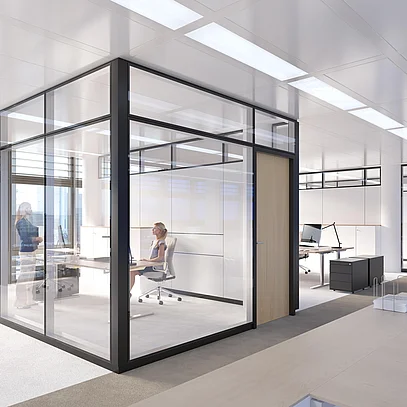

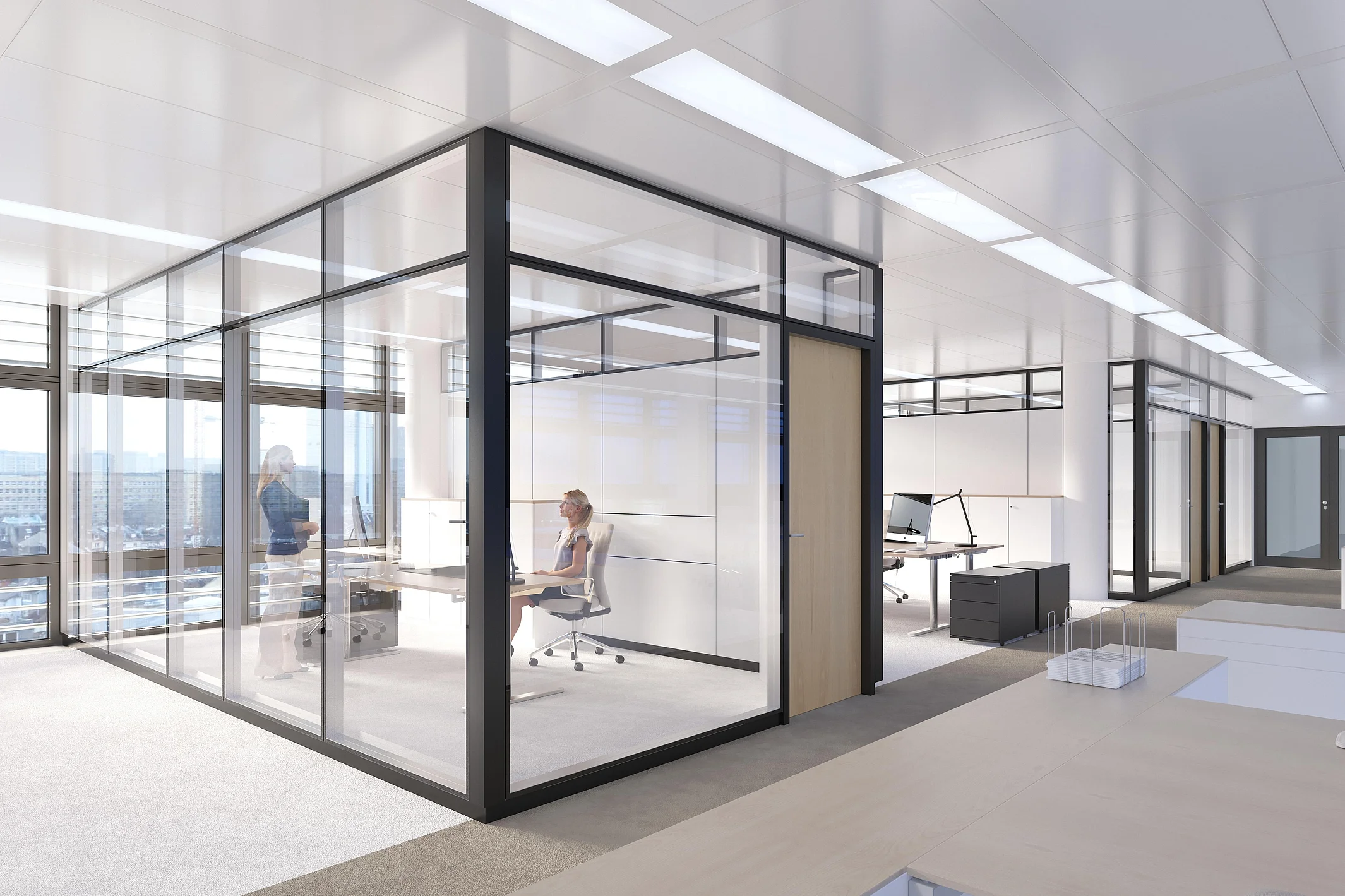

Partition wall system without a visible frame (structural glazing)
Partition wall system without a visible frame (structural glazing)

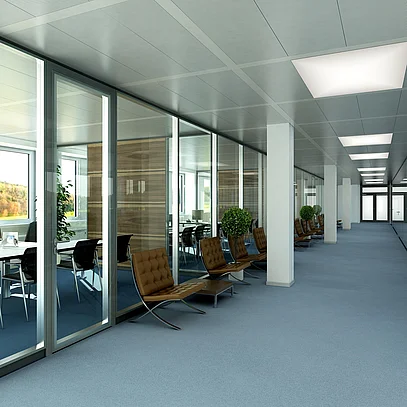

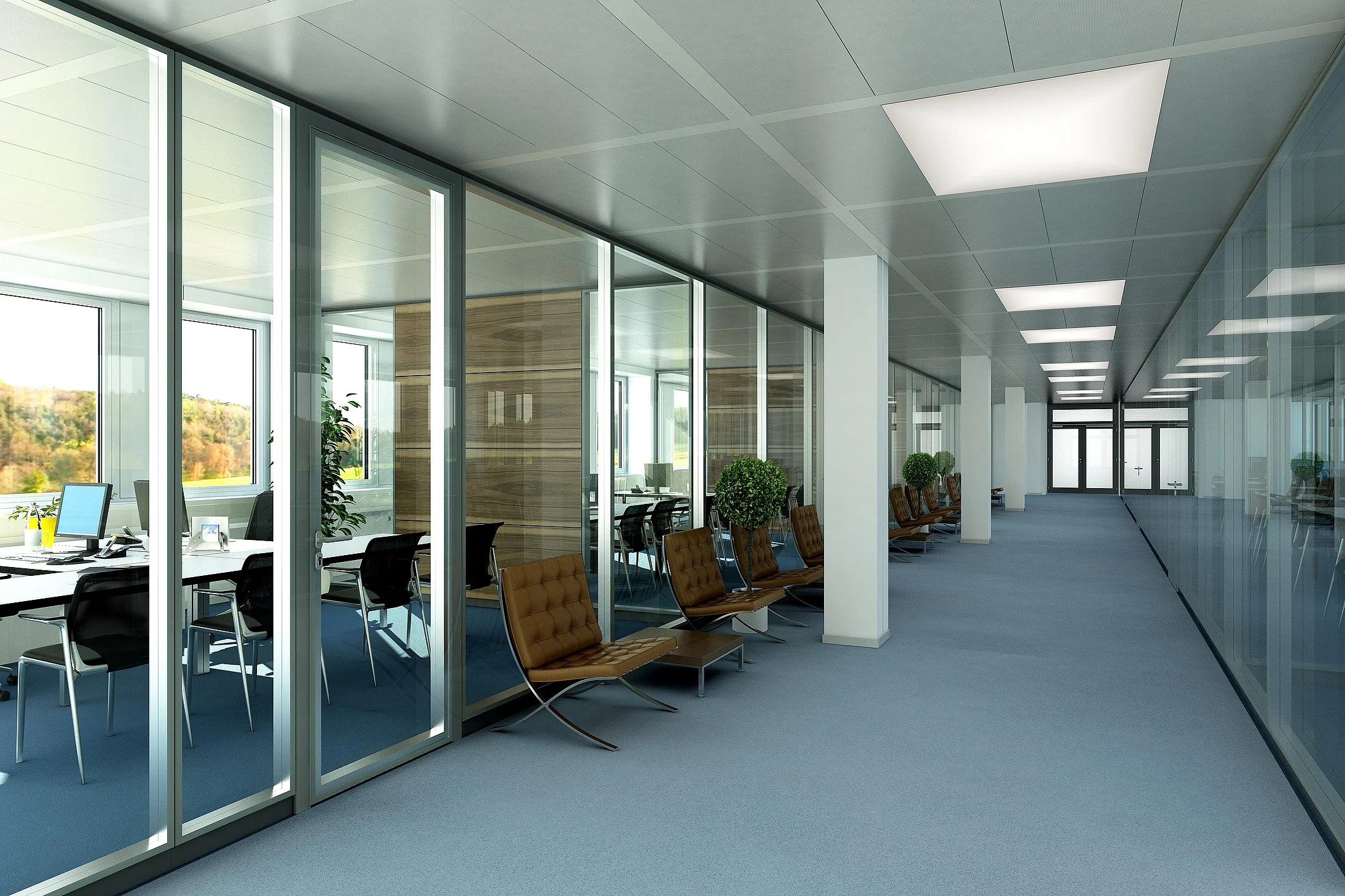

View of the office hallway, flush-mounted glazing combined with a matching tube frame door
Flush-mounted glazing combined with a matching tubular-frame door

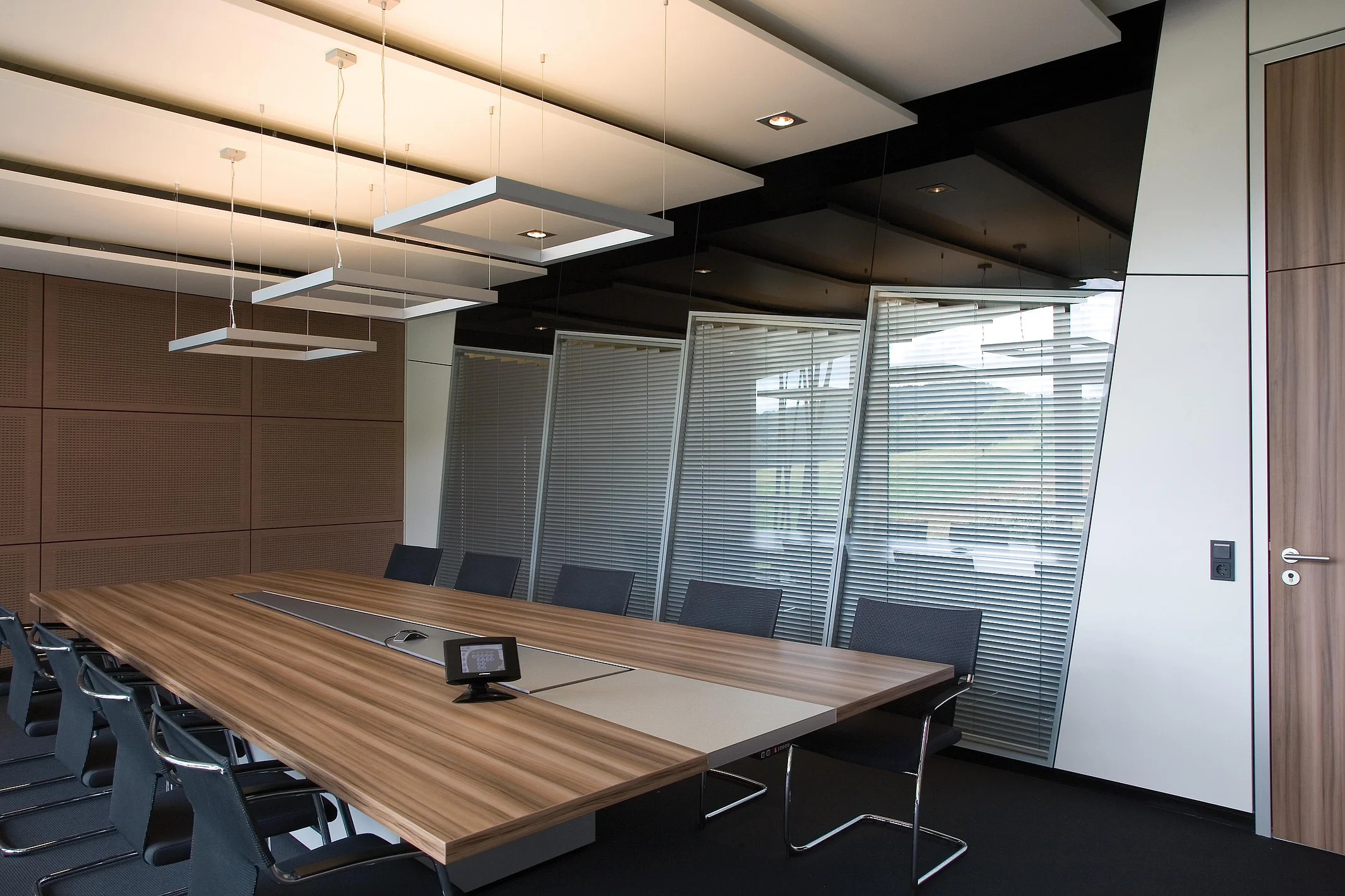

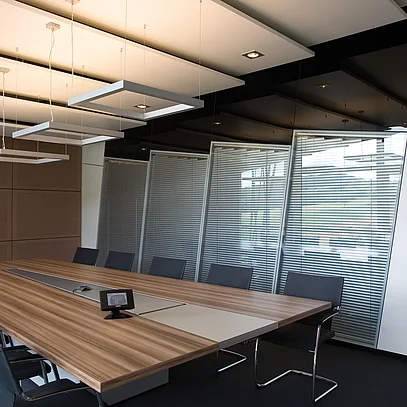

Double-pane glazing with integrated blinds, angled installation
Double-pane glazing with built-in blinds
