Partition wall system

Double-pane glazing T35

Double-pane glazing, flush with the front

Delicate lightness and spaciousness

T35 is a modular partition wall system featuring slender aluminum frames and internal system posts. The system can be configured in flexible width increments and room heights. Serviceable frames ensure sustainable, long-term use. The materials used meet sustainability standards and can be combined with all Goldbach Kirchner partition wall systems.

Sound insulation

42 to 51 dB Rw,p (tested in the laboratory in accordance with DIN EN ISO 10140-3 and DIN EN ISO 717-1)

Floor mounting

Steel telescopic base, powder-coated, height adjustment +/- 20 mm

Fall protection

Model with ABP in accordance with DIN 18008-4

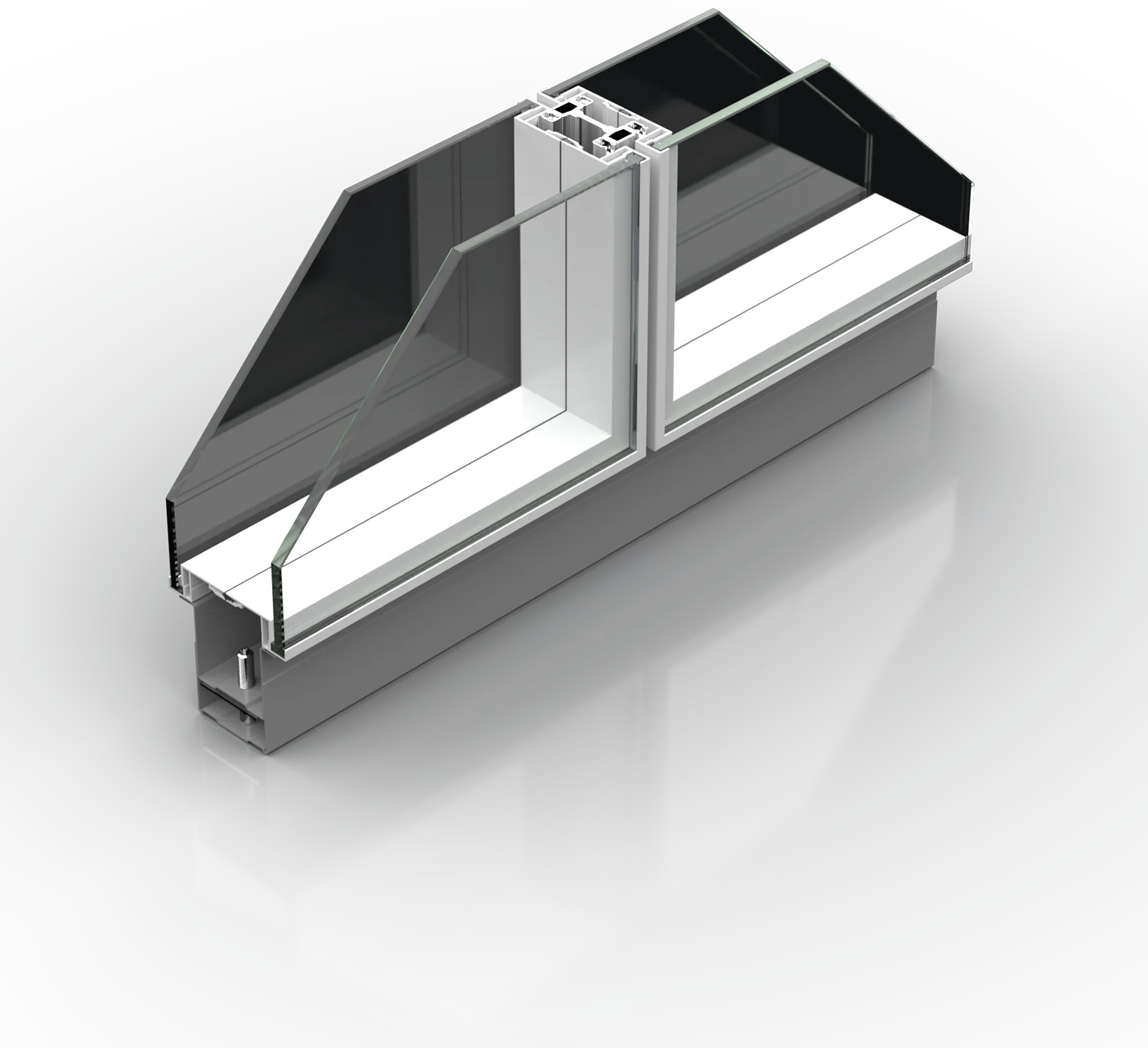

Cross-section

Double-pane glazing with aluminum profiles in a steel frame construction

Features

Technical specifications of the T35 partition wall system

All materials used comply with current technical specifications and sustainability standards. The T35 partition can be combined with all Goldbach Kirchner partition wall systems.

Technical specifications

Construction
Non-load-bearing interior partition system; compartments formed by steel profiles as a substructure; aluminum-glass frames secured with clip screws; accessible for maintenance at any time
Wall thickness
100 mm
Glazing
Double-pane glazing, flush with the front, standard version in 6 mm tempered glass
Aluminum frame
Extruded aluminum profiles, standard EV1 anodized finish, visible width 23 mm
Connection profiles
Steel, powder-coated in RAL 9011 matte with a fine texture, RAL 9010, and RAL 9006
Floor connection
Steel telescoping profile, powder-coated, approx. 80 mm, floor leveling +/- 20 mm

Sound insulation

Sound insulation rating
42 to 51 dB Rw,p (according to DIN EN ISO 10140-3, DIN EN ISO 717-1)

Fire safety

Combination
Possible with T36 EI30

Smoke protection

Classification
Possible, in accordance with DIN 18095-2

Sustainability

Recycling
Pure separation by type and full recyclability of the materials are possible
Compliance with the criteria of the following certifications
DGNB, LEED
Circular Construction
Wall panels can be dismantled and relocated without damage—even while the facility is in operation
System extension
Compatible with virtually all Goldbach Kirchner partition systems
CO2-Neutral
Produced without the use of fossil fuels
Durability
Relocation is possible without loss of material

Other models

Fall protective
Version with ABP in accordance with DIN 18008-4
Curved
Minimum radius: 600 mm

Extensions

Modular door systems

Compare partition systems

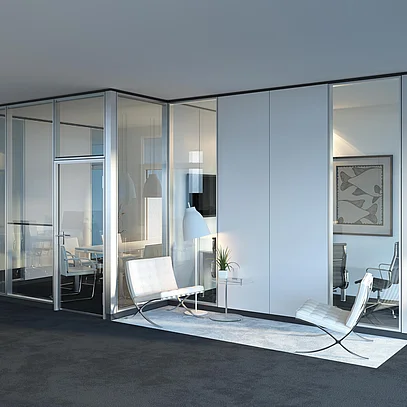

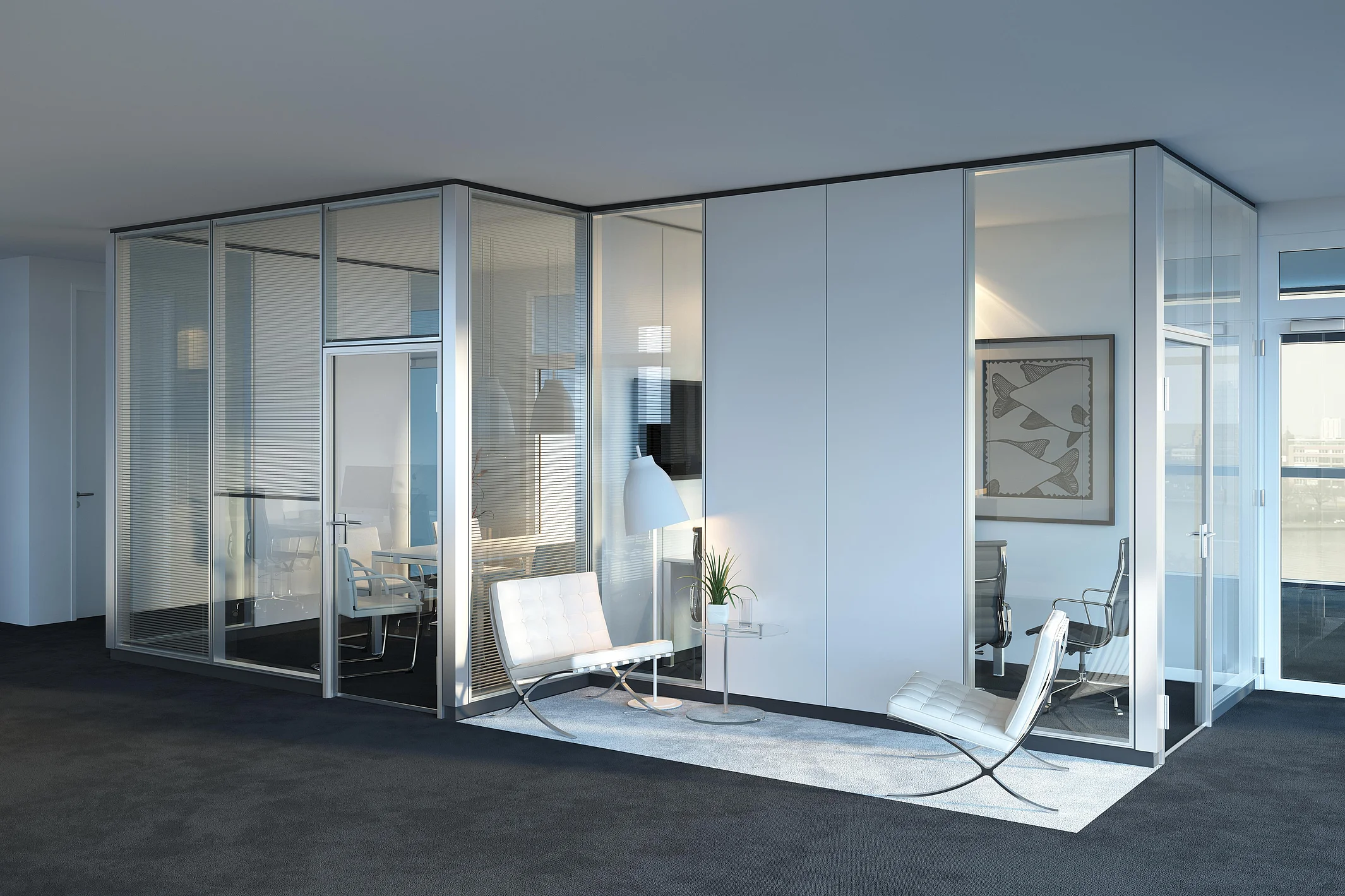

Partition wall system with flush-mounted double-pane glazing
Partition wall system with flush-mounted double-pane glazing

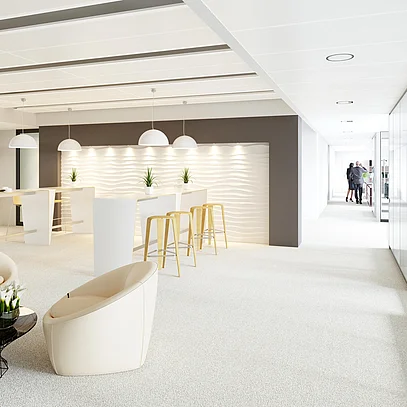

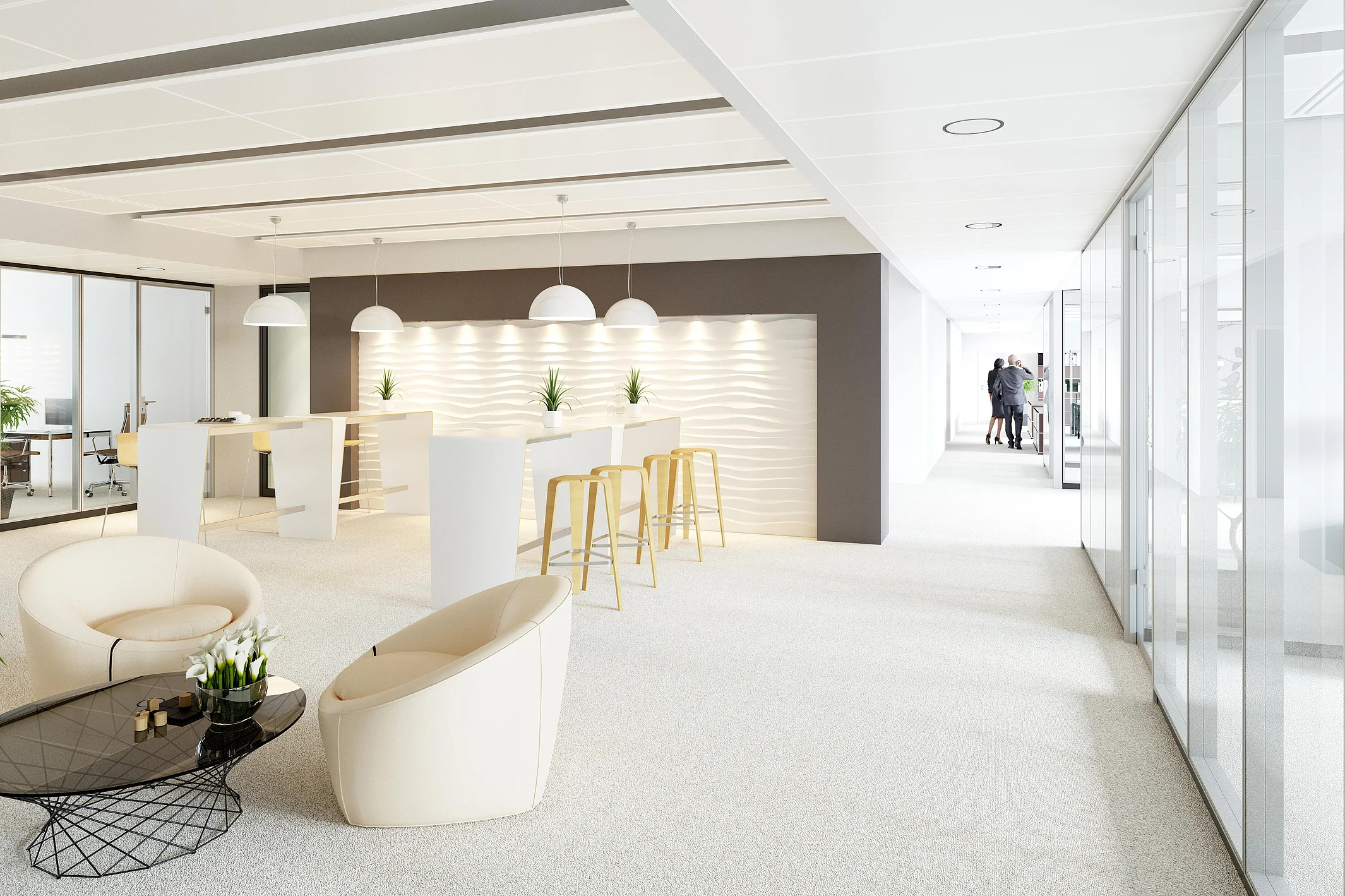

Transparent partitions for high-end office environments
Transparent partitions for high-end office environments

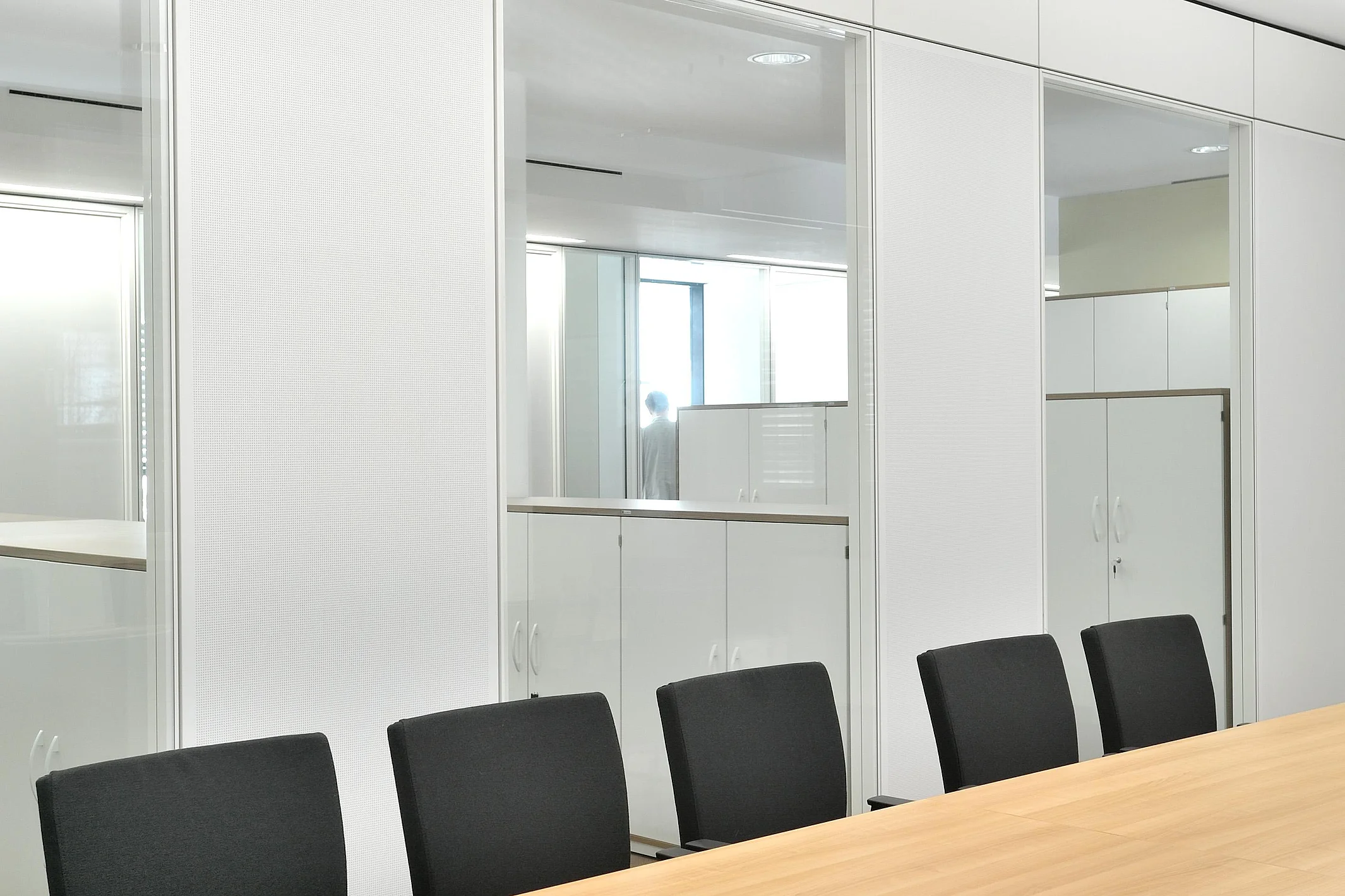

Double-pane glazing with integrated acoustic elements
Double-pane glazing with integrated acoustic elements

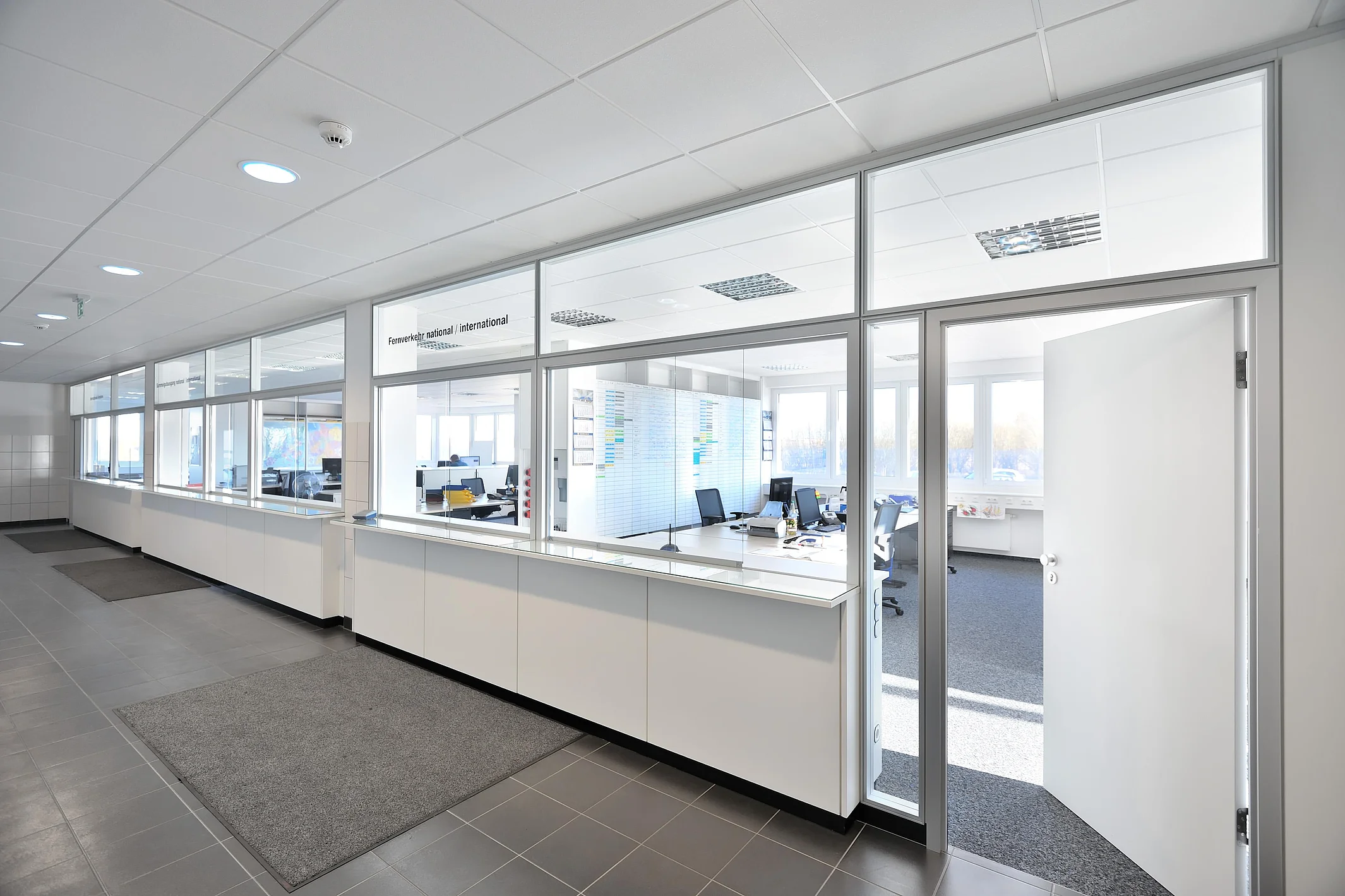

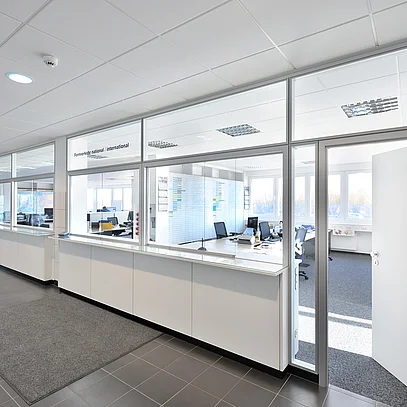

T35 partition wall system for multifunctional solutions, with sliding windows in T50
T35 partition wall system for multifunctional solutions, with sliding windows in T50

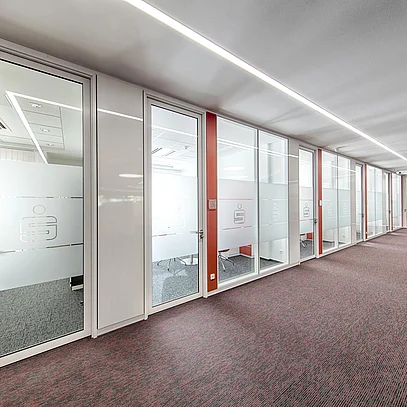

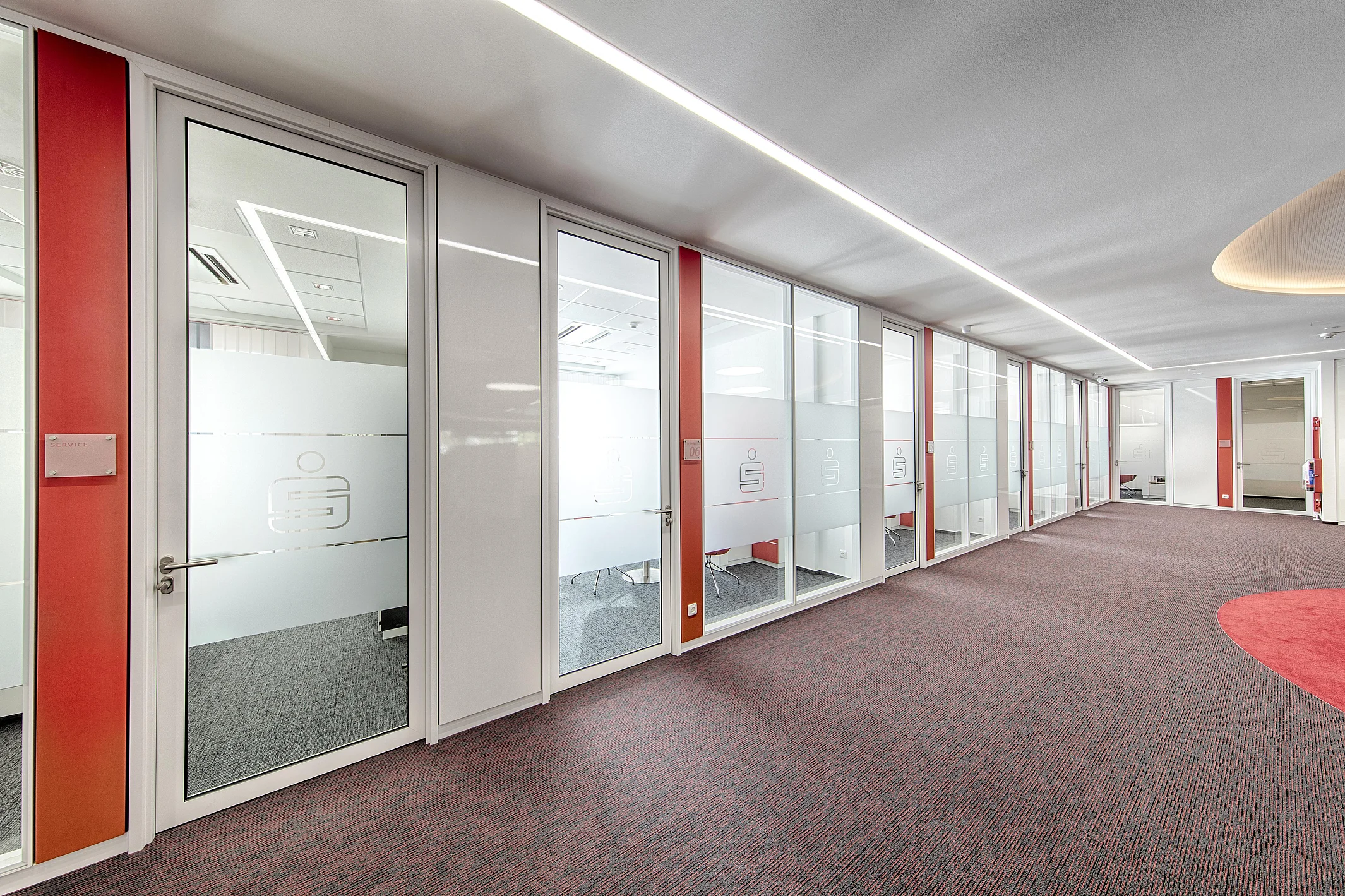

White partition profiles with colored E-panels
White partition profiles with colored E-panels

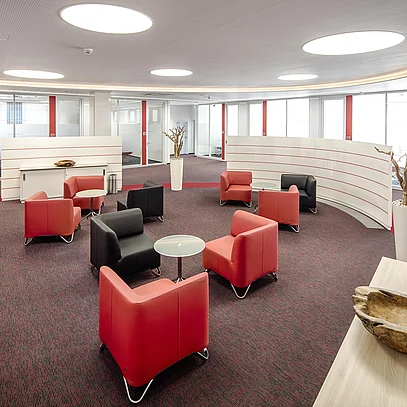

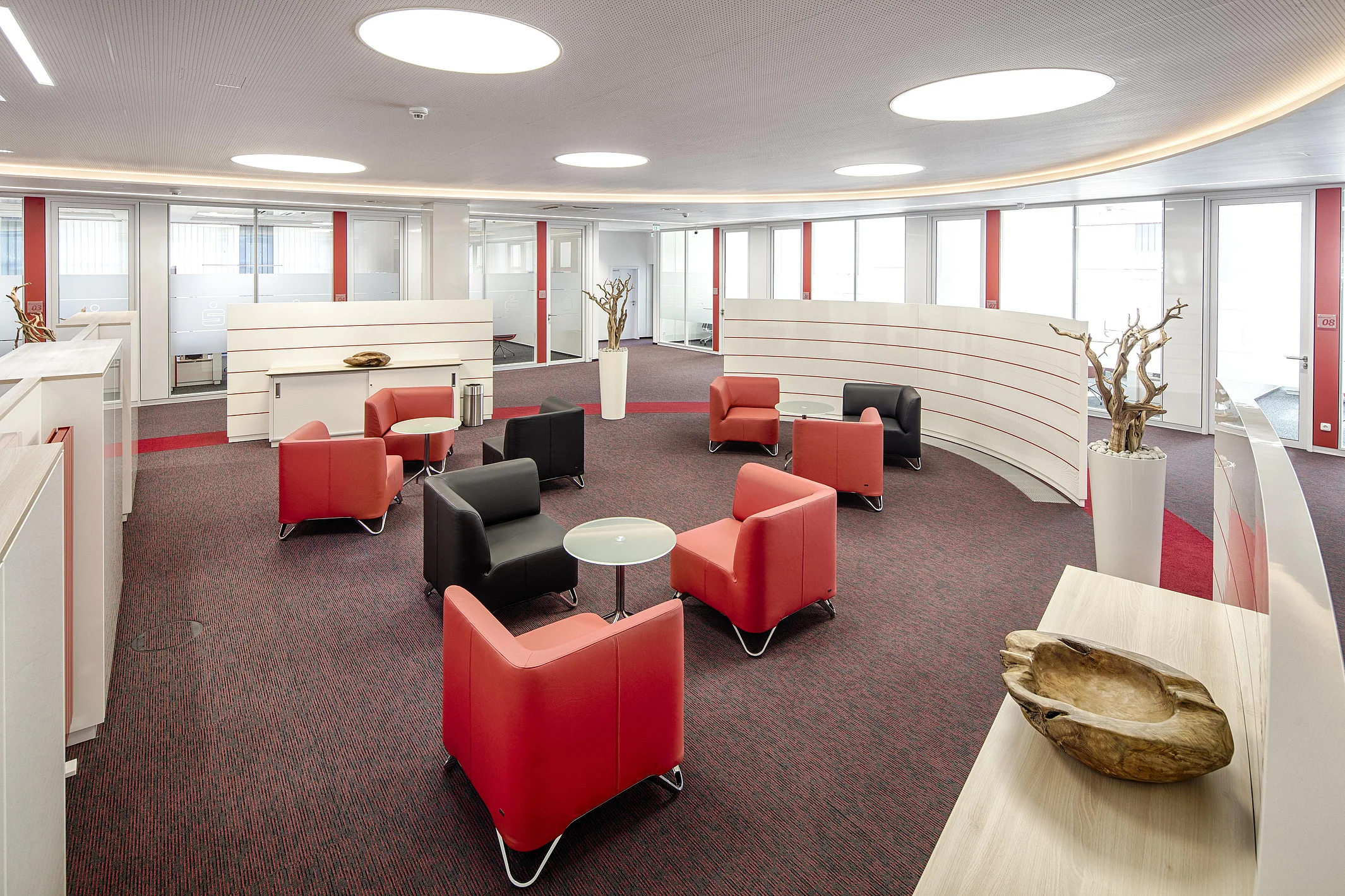

Wall systems complement interior design
Wall systems complement interior design

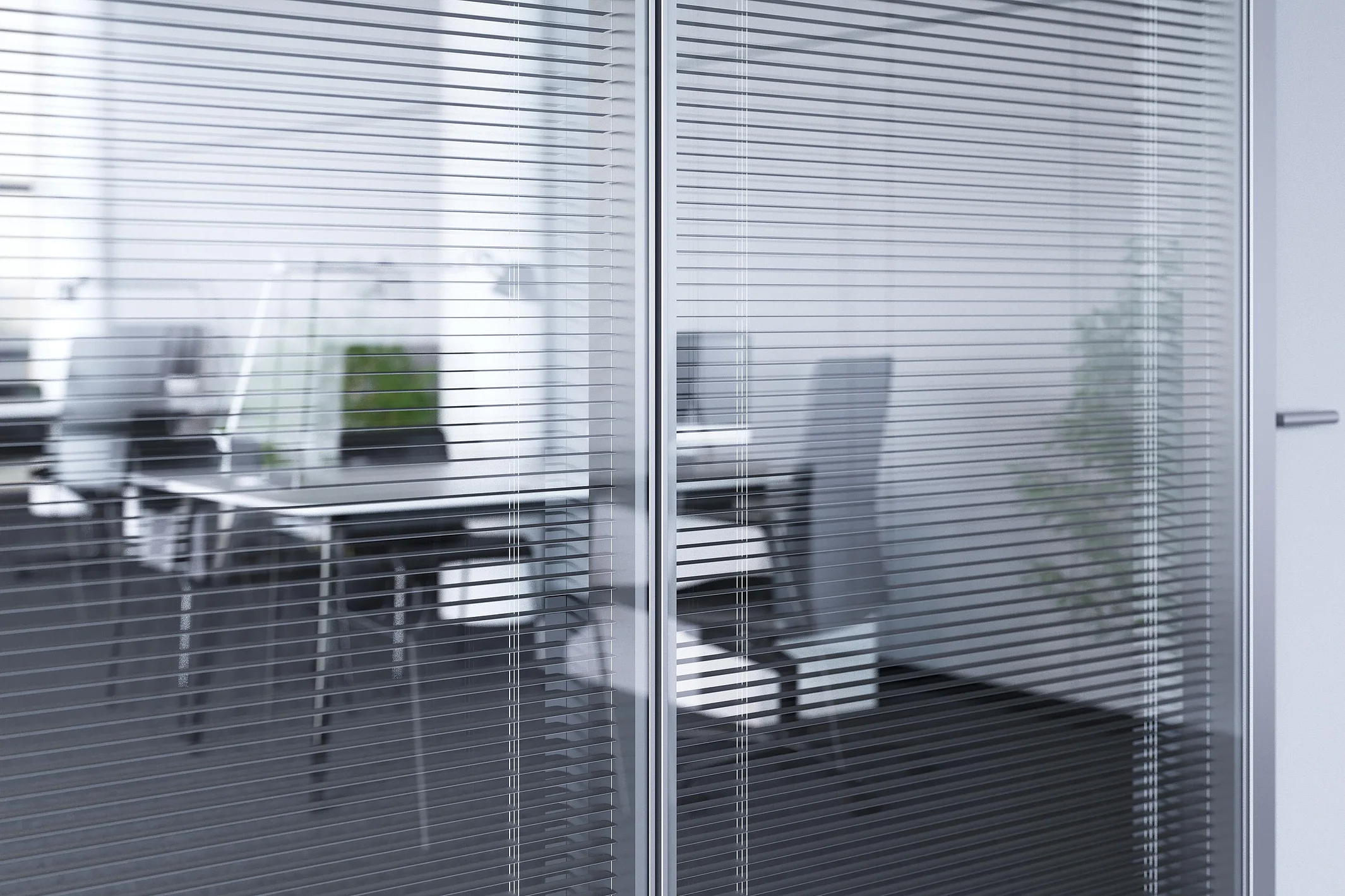

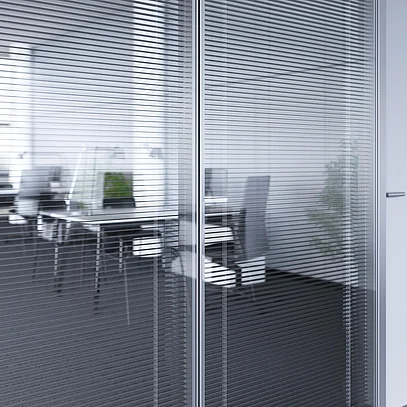

Privacy protection with blinds
Privacy protection with blinds

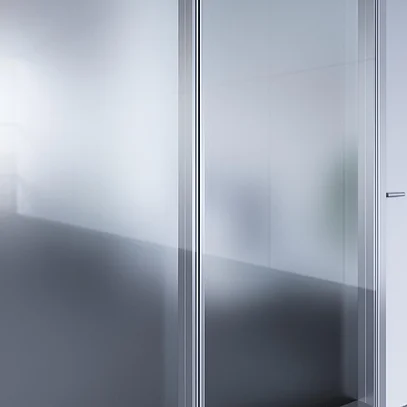

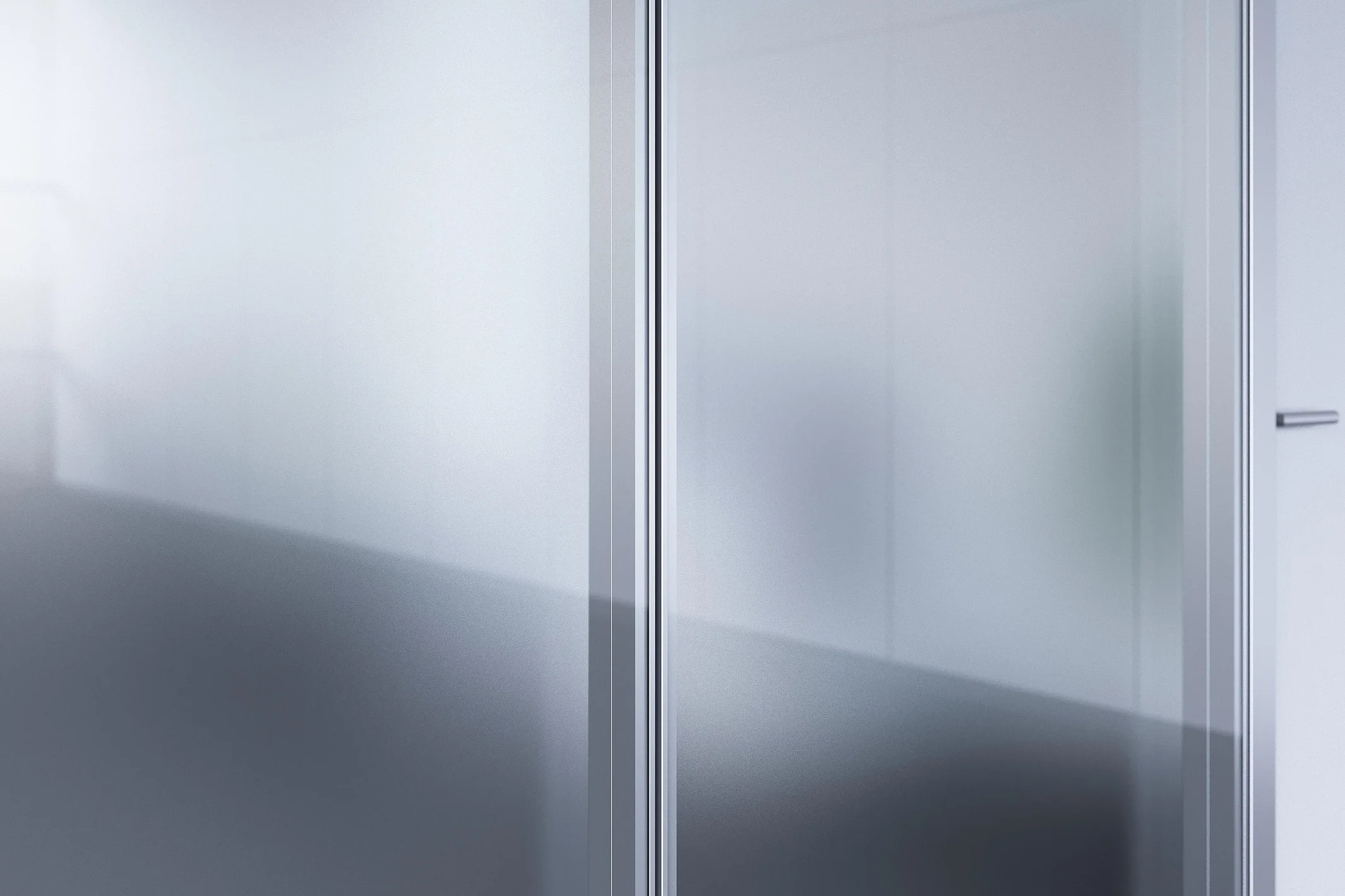

Privacy protection through satin finishing
Privacy protection through satin finishing
