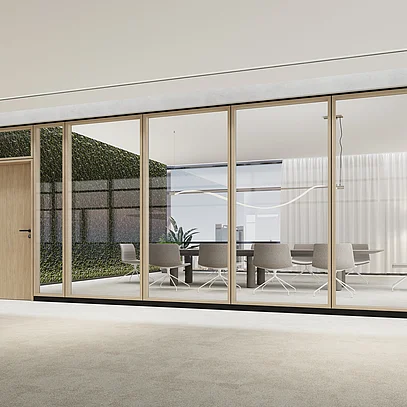

Partition wall system

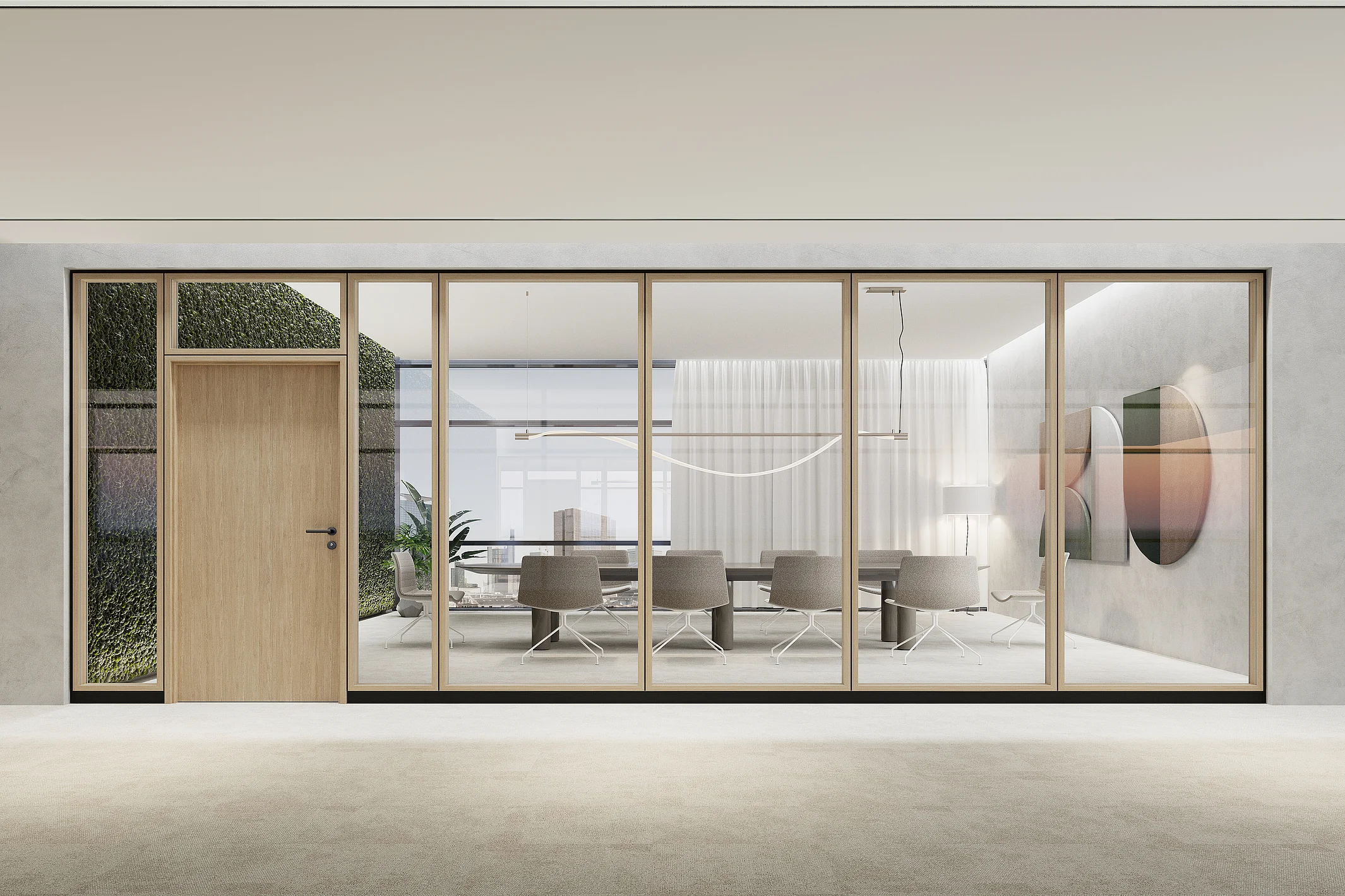

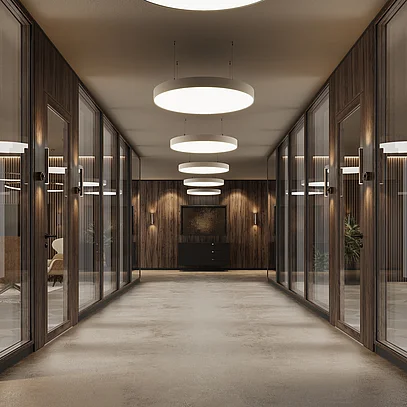

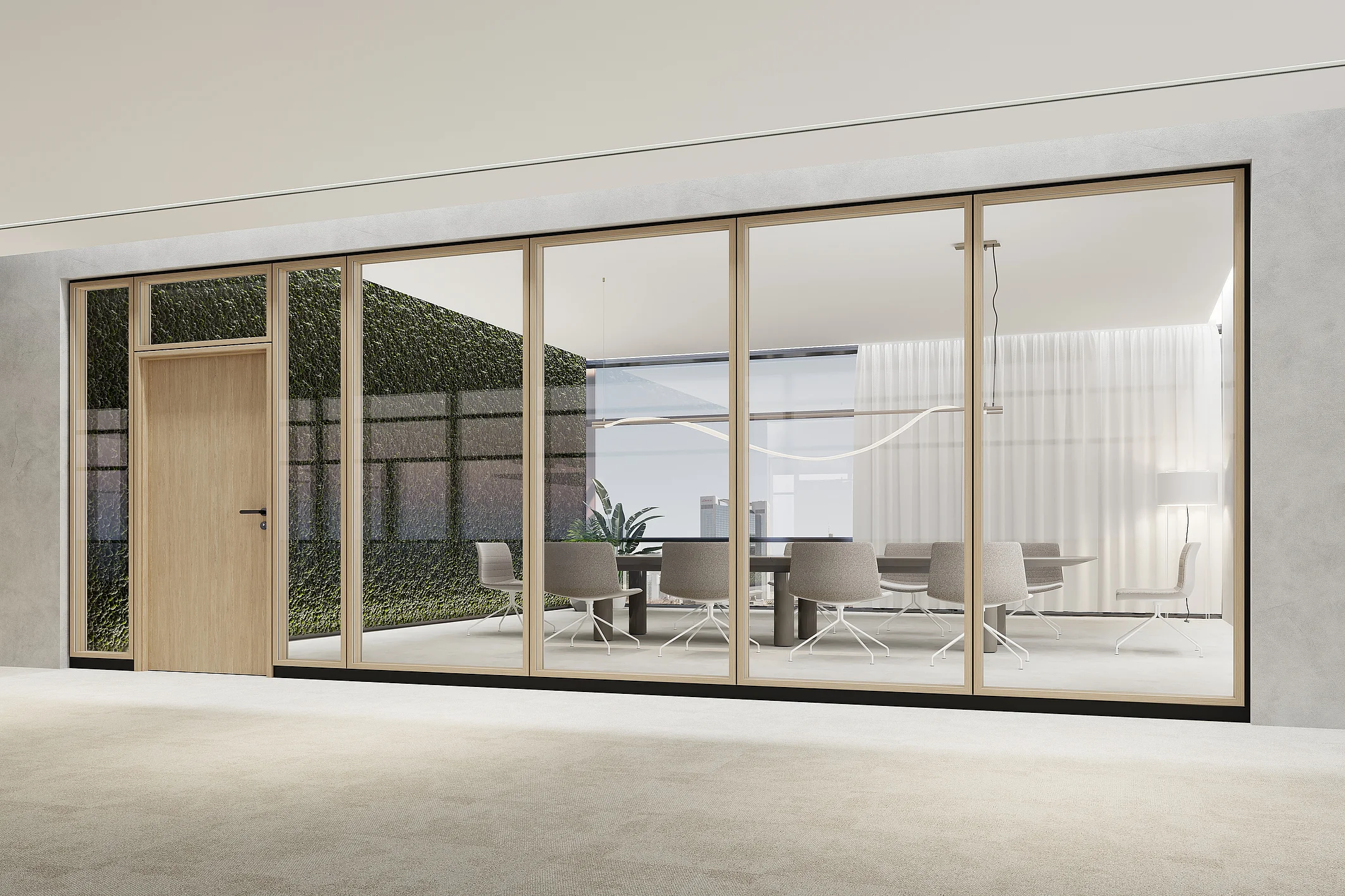

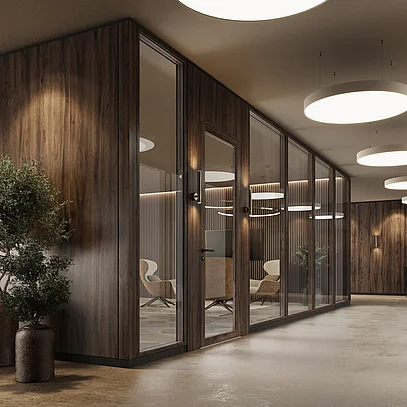

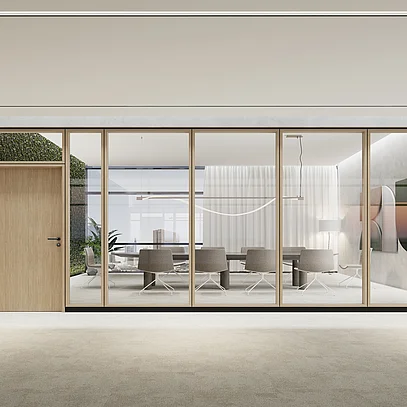

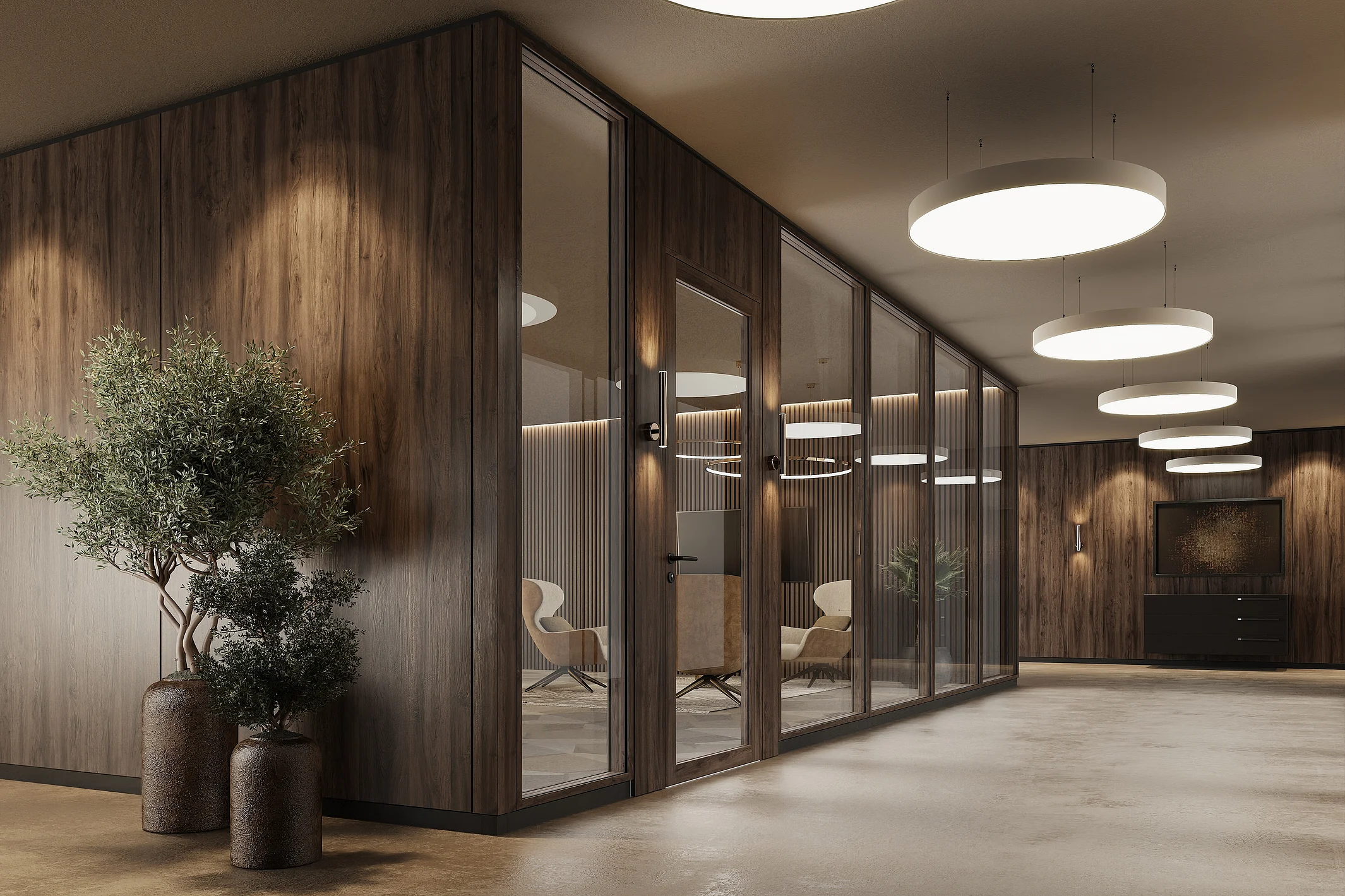

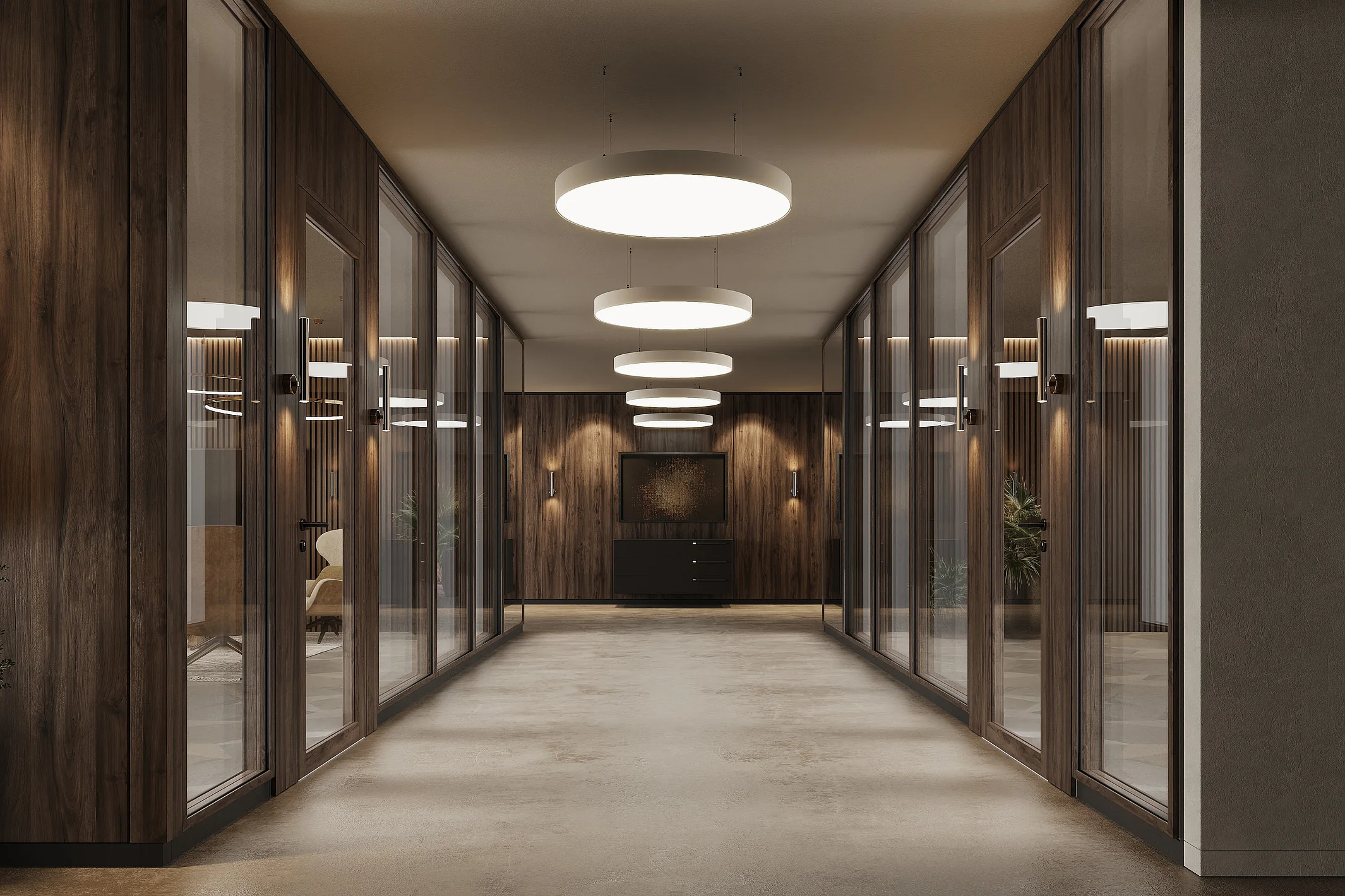

Double-pane glazing T34 NATURE

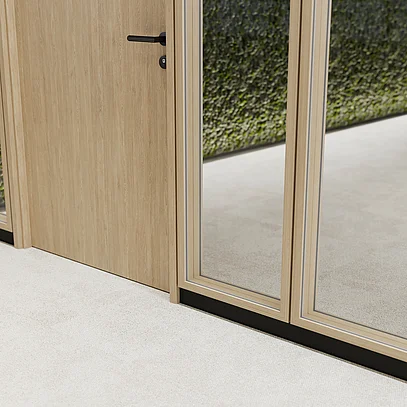

Double-pane glazing, flush with the front, with solid wood frame

Flexible room partitioning without compromise

The T34 NATURE is a highly flexible partition wall system. Its key feature is the solid wood profiles with a face width of 34 mm. The system can be configured in flexible width increments and room heights. A variety of glass types and custom finishes allow for personalized
designs. The materials used meet sustainability standards and can be combined with all Goldbach Kirchner partition wall systems.

Sound insulation

Up to 51 dB Rw,p (according to DIN EN ISO 140-3, DIN EN ISO 717-1)

Floor mounting

Steel telescopic base, powder-coated, height adjustment +/- 20 mm

Glazing

Double-pane glazing in separate solid wood frames with an intermediate dry seal

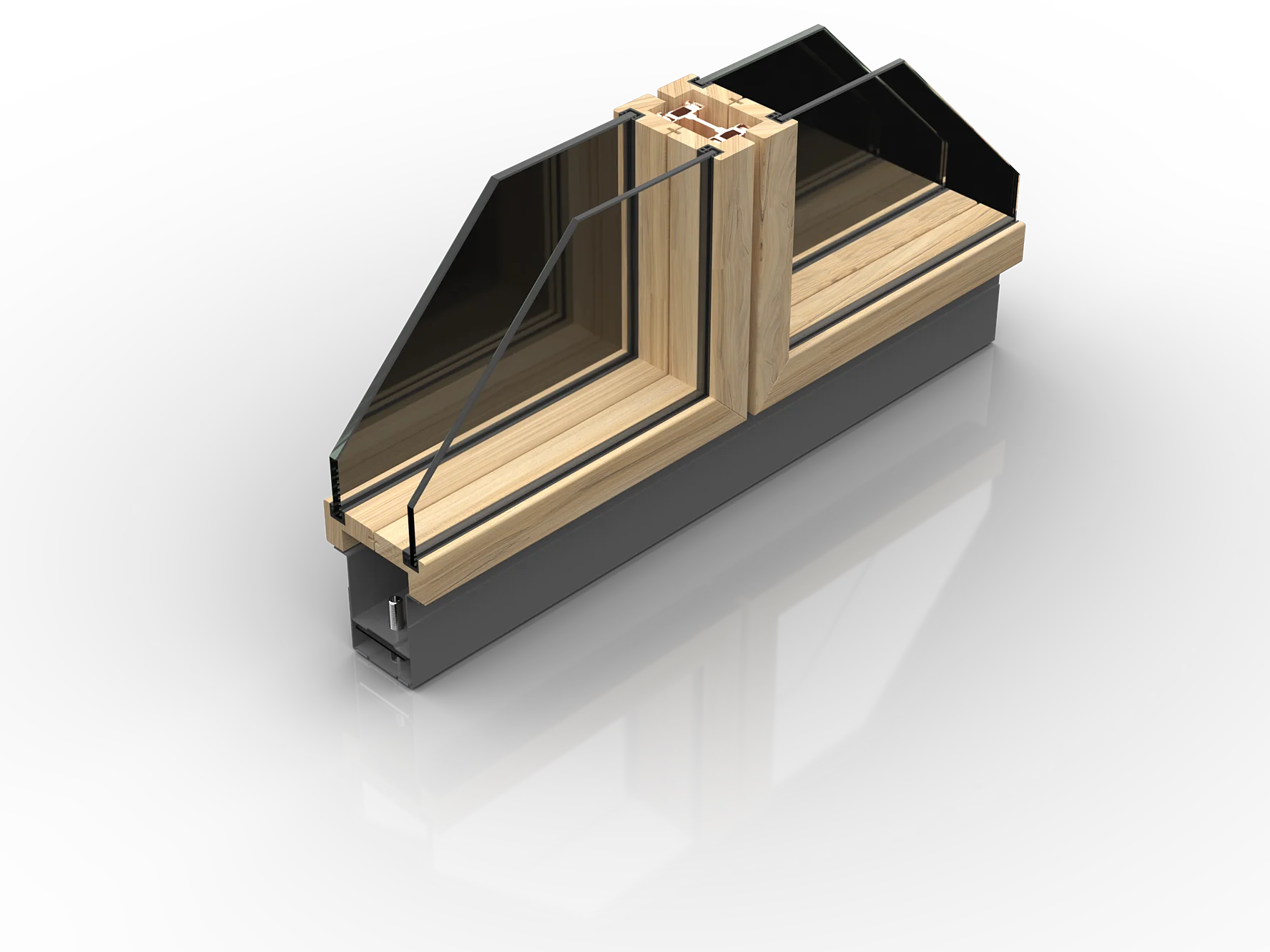

Cross-section

Double-pane glazing with solid wood frames in a steel-frame construction

Features

Technical specifications of the T34 NATURE partition wall system

All materials used comply with current technical specifications and sustainability standards. The T34 NATURE partition can be combined with all Goldbach Kirchner partition wall systems.

Technical specifications

Construction
Non-load-bearing interior partition system; compartments formed by steel profiles as a substructure; solid wood and glass frames secured in place; accessible for maintenance at any time
Wall thickness
100 mm
Glazing
Double-pane glazing, flush with the front, standard version in 6 mm tempered glass
Wooden frame
Solid wood profiles in oak, ash, maple, or beech; finishes available in clear, matte, or lacquered; sealant colors available in RAL 7035 or RAL 7016
Connection profiles
Steel, powder-coated in RAL 9011 matte with a fine texture, RAL 9010, and RAL 9006
Floor connection
Steel telescoping profile, powder-coated or with a wood-grain finish, approx. 80 mm, floor leveling +/- 20 mm

Sound insulation

Sound insulation rating
Up to 51 dB Rw,p (according to DIN EN ISO 10140-3, DIN EN ISO 717-1)

Fire safety

Classification
F0, no requirements

Sustainability

Recycling
Pure separation by type and full recyclability of the materials are possible
Compliance with the criteria of the following certifications
DGNB, LEED
Circular Construction
Wall panels can be dismantled and relocated without damage — even while the facility is in operation
System extension
Compatible with virtually all Goldbach Kirchner partition systems
CO2-Neutral
Produced without the use of fossil fuels
Durability
Relocation is possible without loss of material
