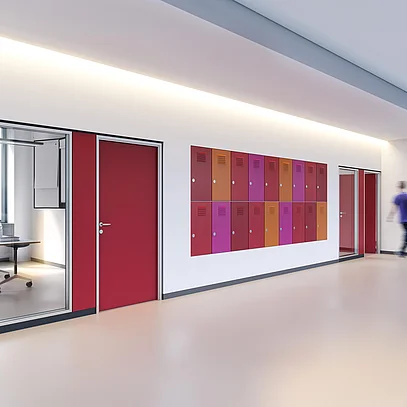

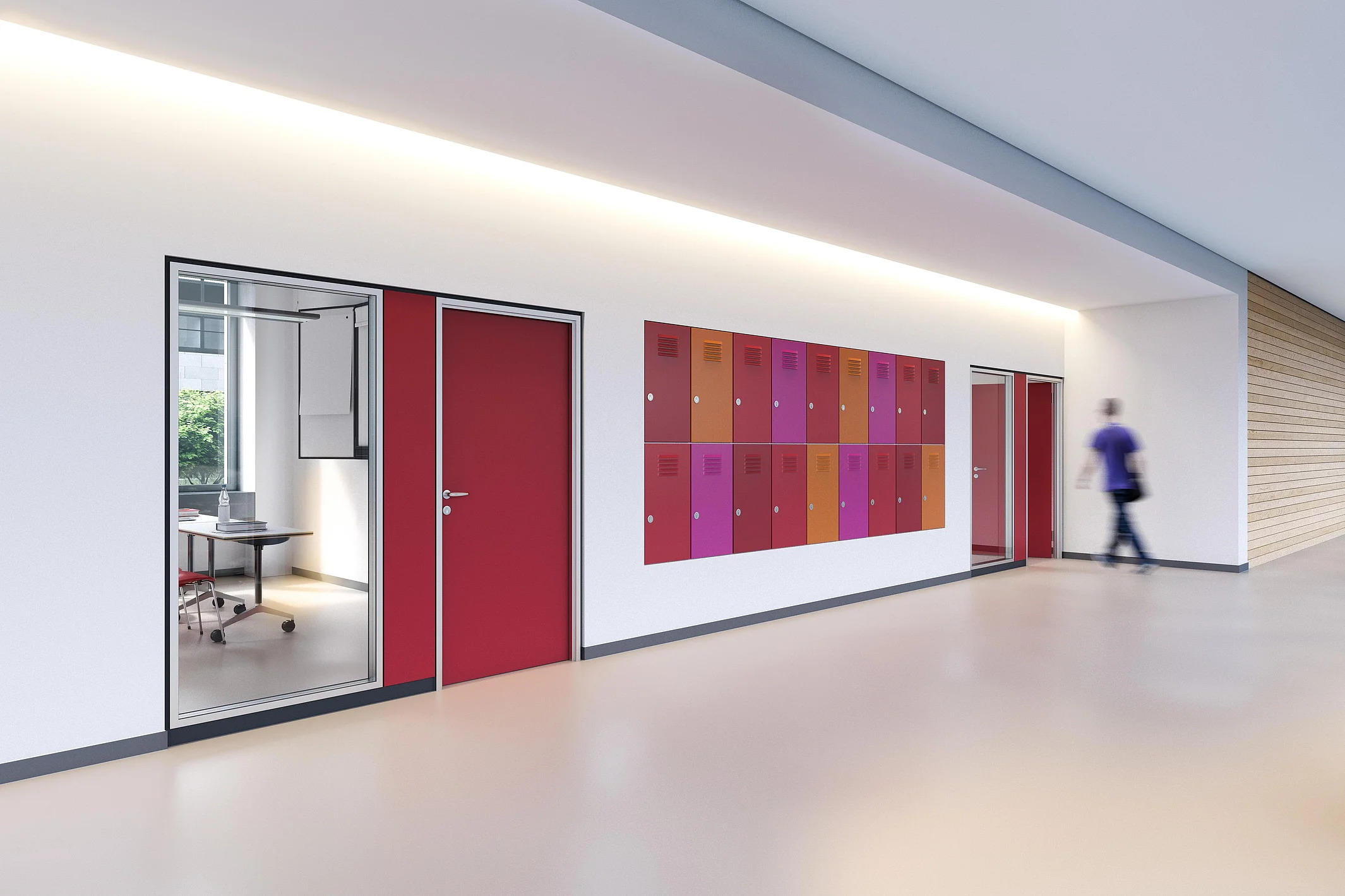

Double-pane glazing, flush with the front

Flexible room partitioning without compromise

A flexible, modular partition wall system featuring slender aluminum frames and internal support posts. Its key feature is the flush-mounted double-pane glazing with a face width of 34 mm. The system can be configured in flexible width increments and room heights. The materials used meet sustainability standards and can be combined with all Goldbach Kirchner partition wall systems.

Sound insulation

40 to 51 dB Rw,p (according to DIN EN ISO 140-3, DIN EN ISO 717-1)

Floor mounting

Steel telescopic base, powder-coated, height adjustment +/- 20 mm

Glazing

Flush-mounted double-pane glazing

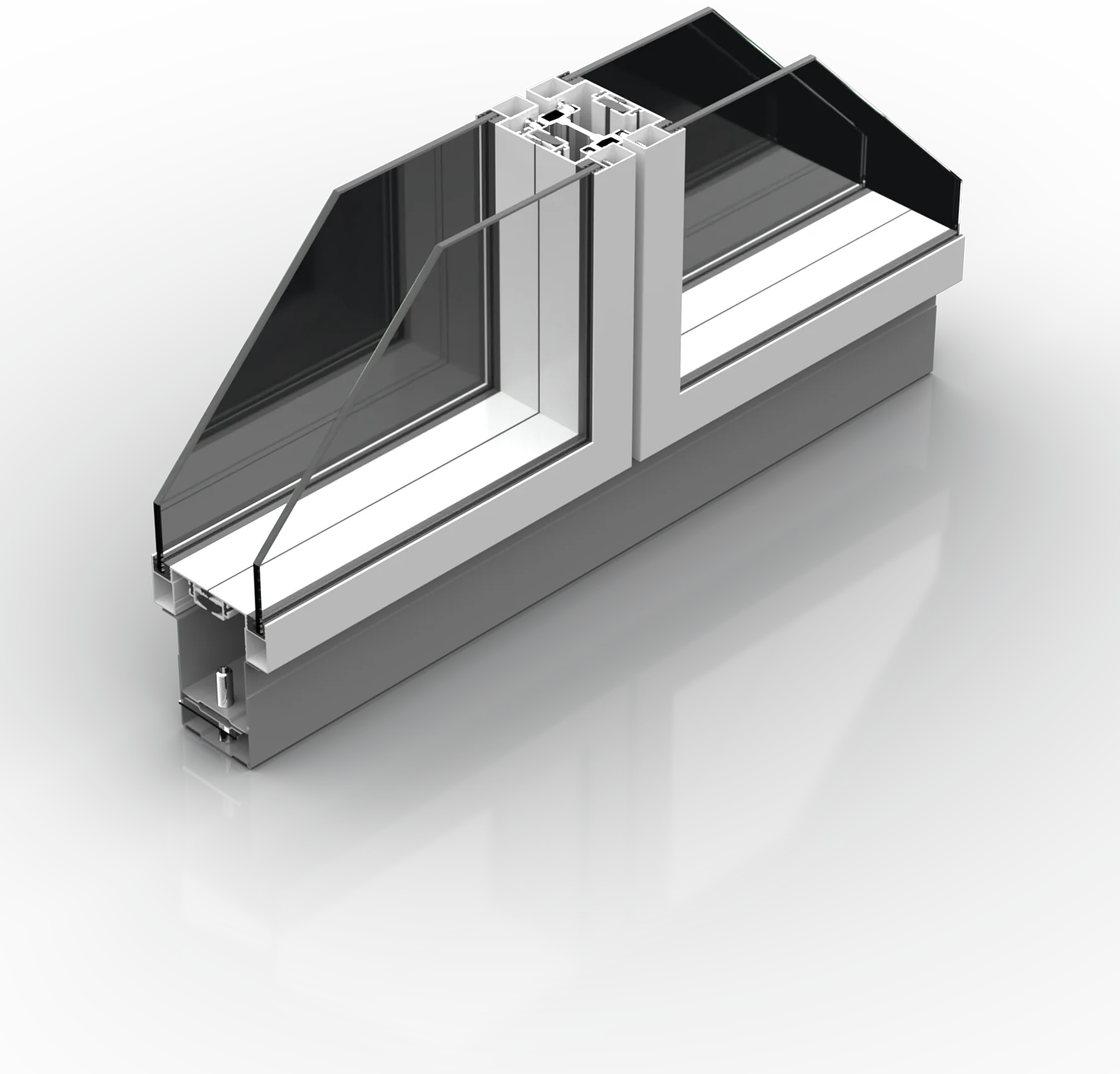

Cross-section

Double-pane glazing with aluminum profiles in a steel frame construction

Features

Technical details of the T34 partition wall system

All materials used comply with current technical specifications and sustainability standards. The T34 partition can be combined with all Goldbach Kirchner partition wall systems.

Technical specifications

Construction: Non-load-bearing interior partition system; compartments formed by steel profiles as a substructure; aluminum-glass frames secured with clip screws; accessible for maintenance at any time
Wall thickness: 100 mm
Glazing: Double-pane glazing, flush with the front, standard version in 6 mm tempered glass
Aluminum frame: Extruded aluminum profiles, standard EV1 anodized finish, face width 34 mm
Connection profiles: Steel, powder-coated in RAL 9011 matte with a fine texture, RAL 9010, and RAL 9006
Floor connection: Steel telescoping profile, powder-coated, approx. 80 mm, floor leveling +/- 20 mm

Sound insulation

Sound insulation rating: 42 to 51 dB Rw,p (according to DIN EN ISO 10140-3, DIN EN ISO 717-1)

Fire safety

Combination: Possible with T34 EI30

Smoke protection

Classification: Possible, in accordance with DIN 18095-2

Sustainability

Recycling: Pure separation by type and full recyclability of the materials are possible
Compliance with the criteria of the following certifications: DGNB, LEED
Circular Construction: Wall panels can be dismantled and relocated without damage — even while the facility is in operation
System extension: Compatible with virtually all Goldbach Kirchner partition systems
CO2-Neutral: Produced without the use of fossil fuels
Durability: Relocation is possible without loss of material

Other models

Curved: Minimum radius: 600 mm

Extensions

Modular door systems

Compare partition systems

Downloads

Downloads for the T34 partition wall system

Extensions

Intelligently complement partition wall systems

Foliation

Switchable glass

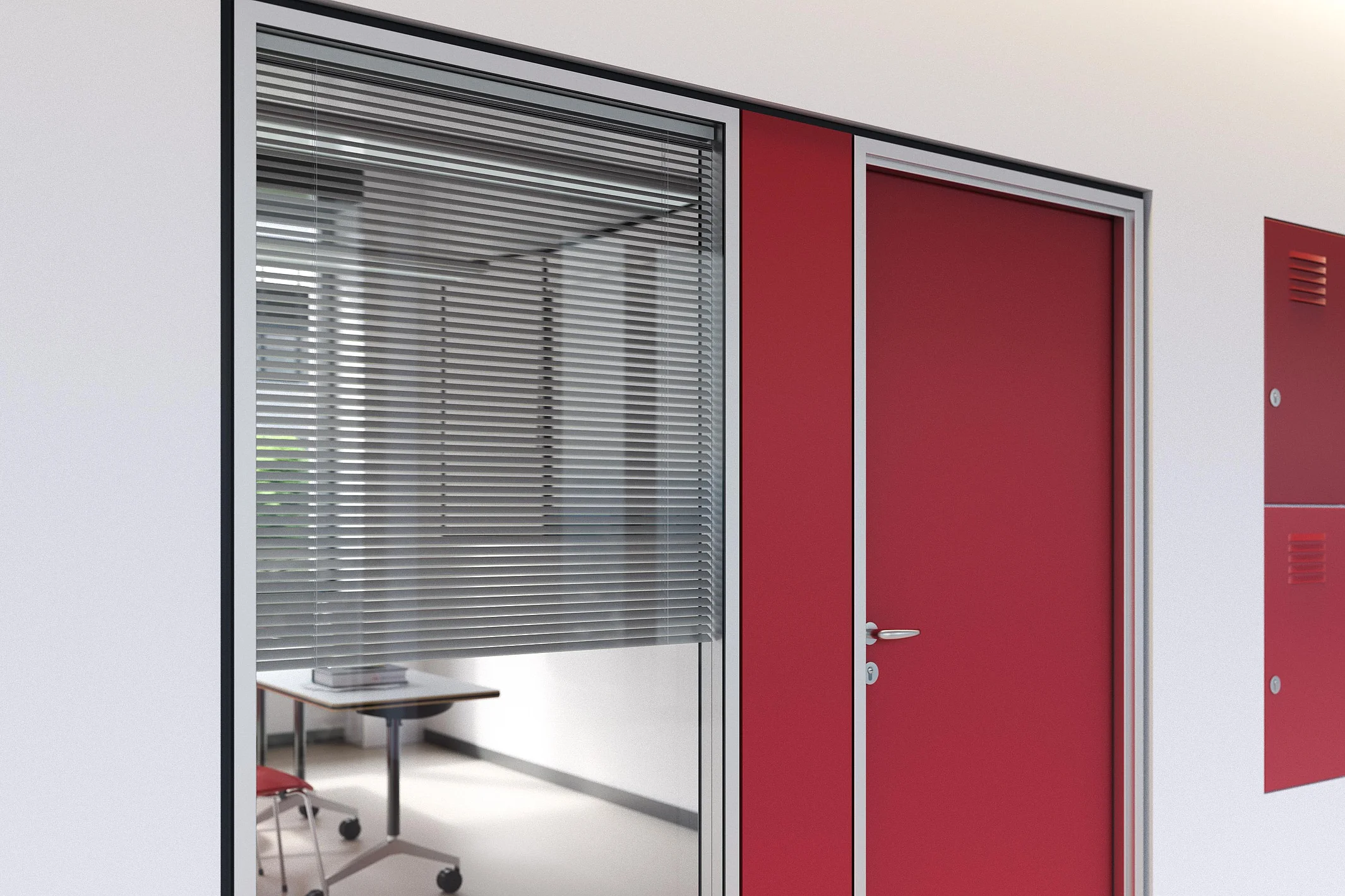

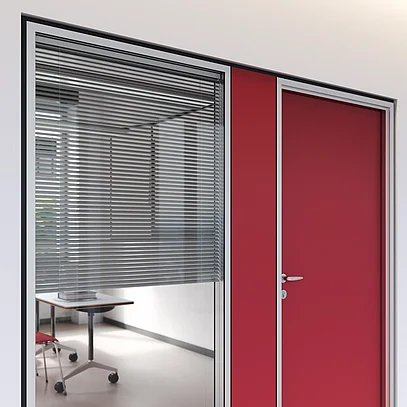

Interior blinds
